6 Heads & 1.8m Printer

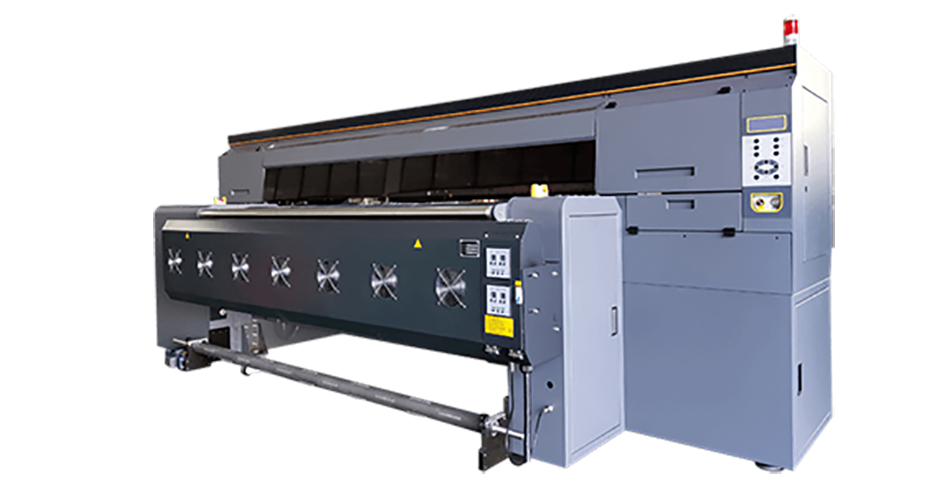

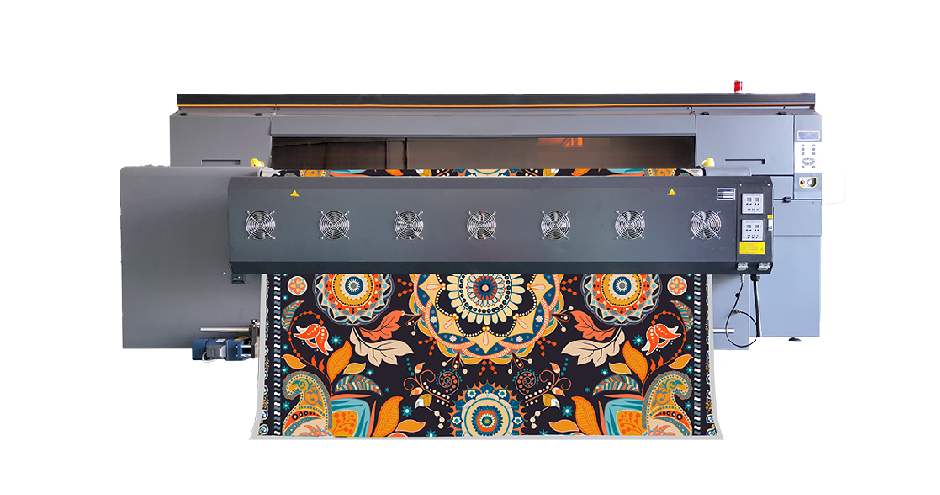

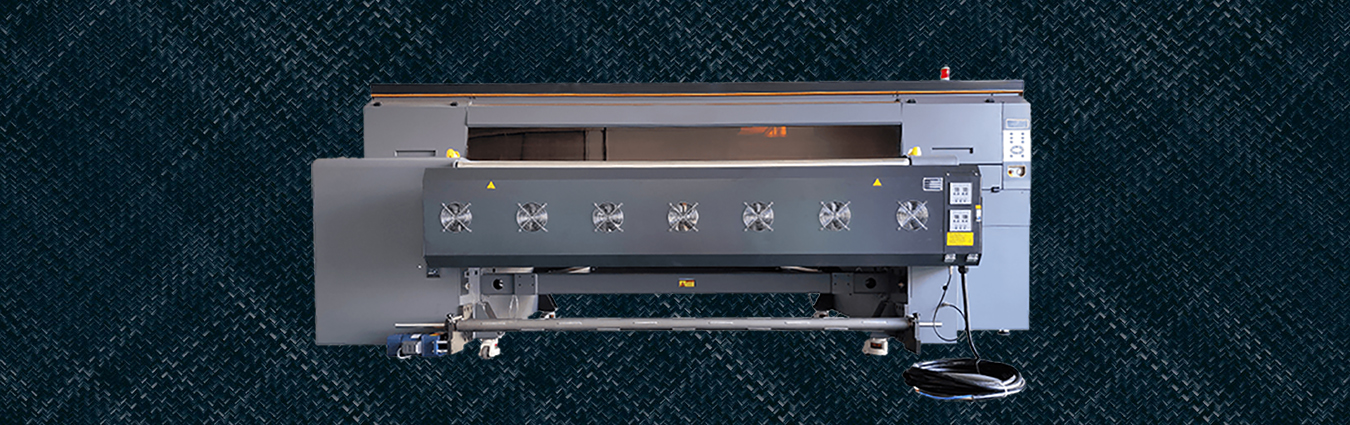

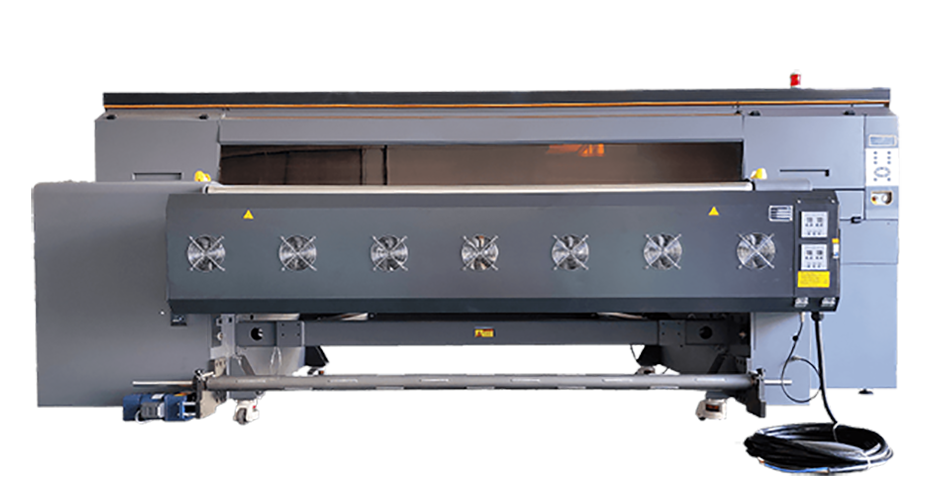

Direct Textile Printer TX-1806E

Printhead: 6*EPSON I3200-A1
Printhead Resolution: 3200DPI
Printing Speed: 160sqm/h
Print Width:1800mm
Ink: Pigment Ink,Disperse Ink,Active Ink,Acid Ink
Media:Cotton,Hemp,Polyester,Silk
Printhead Property:Auto Cleaning, Flash and Moisturizing

Send Inquiry

Send Email

Feature Details Specification Video Application Inquiry

Features

Full production line.Belt auto adjustment

Details

Low printing cost, the best choice for cotton roll printing

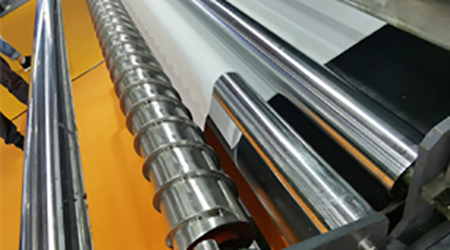

Automatic online washing of belt.Convenient and practical

Low printhead cost and high resolution.High speed,160sqm/h

The super functional feed-in device adapts to a variety of materials

Specification

Printhead	Type:EPSON I3200-A1 Printhead
	Quantity:6
	Resolution:3200DPI
	Head Property:Auto cleaning, flash and moisturizing
Speed	2pass 160sqm/h
Tested on linear print without feather	4pass 92sqm/h
Tested on linear print without feather	6pass 60sqm/h
Printing Width	1800mm
Ink	Pigment Ink/Disperse Ink/Active Ink/Acid Ink
Ink	Color:CMYK
Moisture Mode	Auto-capping Pump Moisture
Media	Cotton Hemp Polyester Silk
Media Transfer	Auto Tension Take-up Media System
Dryer	Extra Heating System

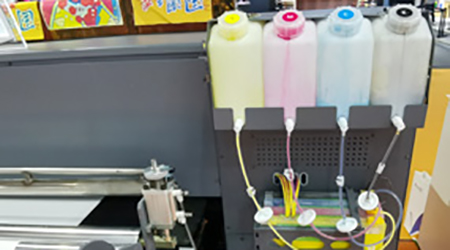

Ink Supply System	Negative Pressure Ink Supply System
Image Format	JPG,TIFF,EPS,PDF...
Work Environment	Temperature15-30centigrade Humidity:45-95%
Power	Rated voltage: AC220V Frequency:50/60 HZ 9000W
Machine Size	340021001500mm

Video

TX-1806E
