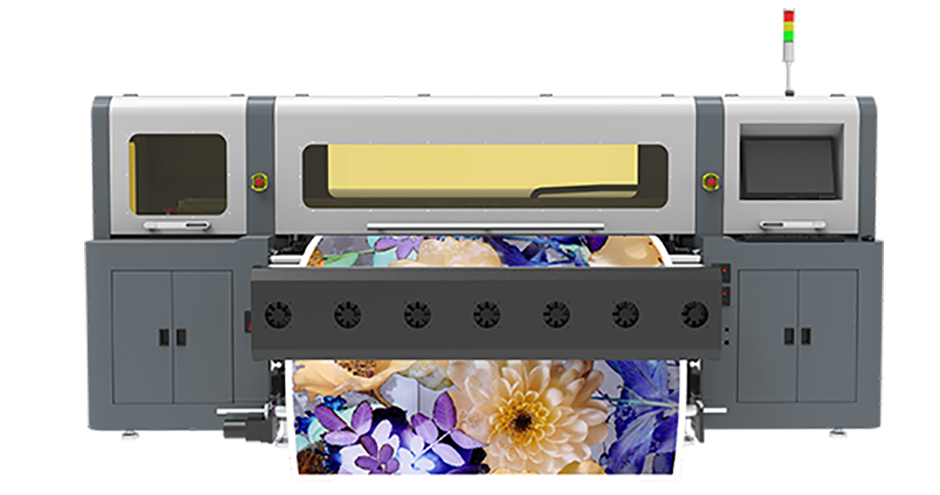

8 Heads & 1.8m Printer

Direct Textile Printer TX-1808E

Printhead: 8*EPSON I3200-A1
Printhead Resolution: 3200DPI
Printing Speed: 240sqm/h
Print Width:1800mm
Ink: Pigment Ink,Disperse Ink,Active Ink,Acid Ink
Media:Cotton,Hemp,Polyester,Silk
Printhead Property:Auto Cleaning, Flash and Moisturizing

Send Inquiry

Send Email

Feature Details Specification Video Application Inquiry

Features

Low print head cost,high printing precision

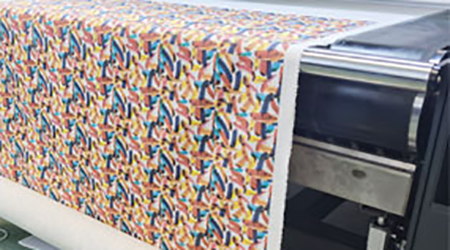

Low printing cost, the best choice for fabric roll print

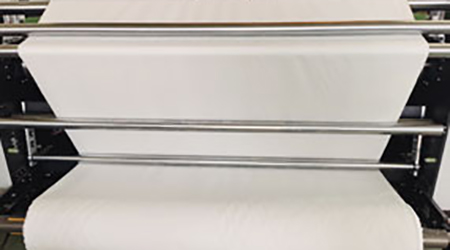

Rich configuration, optional meter dryer or furnace

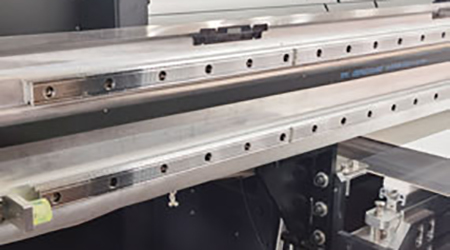

Convenient and practical, cost-effective t shirt printer

Details

Used LCD display, visual operation of fabric printer

Belt is free of deviation correction

Equipped with ink level alarm system

Online cleaning of the belt,convenient and efficient

T shirt printer's media feeding system is suitable for variety of fabrics

Install a wrinkle sensor to pause printing when material is wrinkled

Auto ink scraping and moisturizing device to ensure life of print head

Humanized settings to prevent wrinkles when the fabric is feeding

Specification

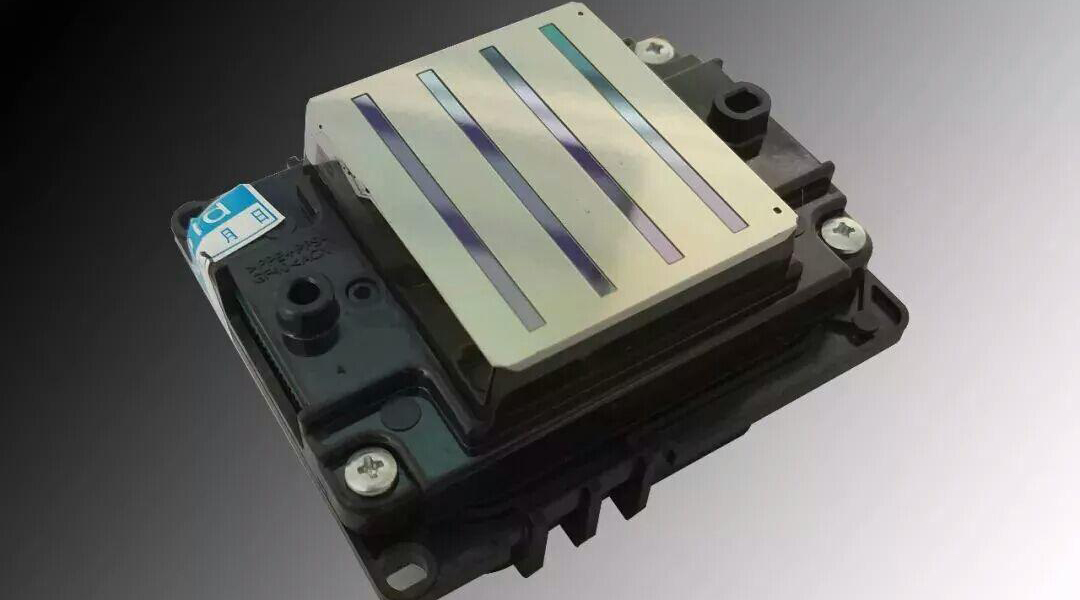

Printhead	Type:EPSON I3200-A1 Printhead
	Quantity:8
	Resolution:3200DPI
	Head Property:Auto cleaning, flash and moisturizing
Printing Speed	Double 4 Color: 1PASS 240sqm/h 2PASS 145sqm/h 4PASS 97sqm/h
Printing Speed	8 Color: 2PASS 152sqm/h 4PASS 93sqm/h 6PASS 64sqm/h
Printing Width	1800mm
Ink	Pigment Ink/Disperse Ink/Active Ink/Acid Ink
Color	Black,Cyan,Magenta,Yellow,Orange,Red,Green,Light Black,Royal Blue
Moisture Mode	Auto-capping Pump Moisture
Media	Cotton,Linen,Hemp,Polyester,Silk
Media Transfer	Auto Tension Take-up Media System
Dryer	Extra Heating System
Ink Supply System	Negative Pressure Ink Supply System
PIP Software	Print Factory,Maintop,Neostampa
Image Format	JPG,TIFF,EPS,PDF...
Work Environment	Temperature18-30 centigrade ; Humidity:45-70%
Power	Rated voltage: AC220V Frequency:50/60 HZ 14000W
Machine Size	370026501650mm

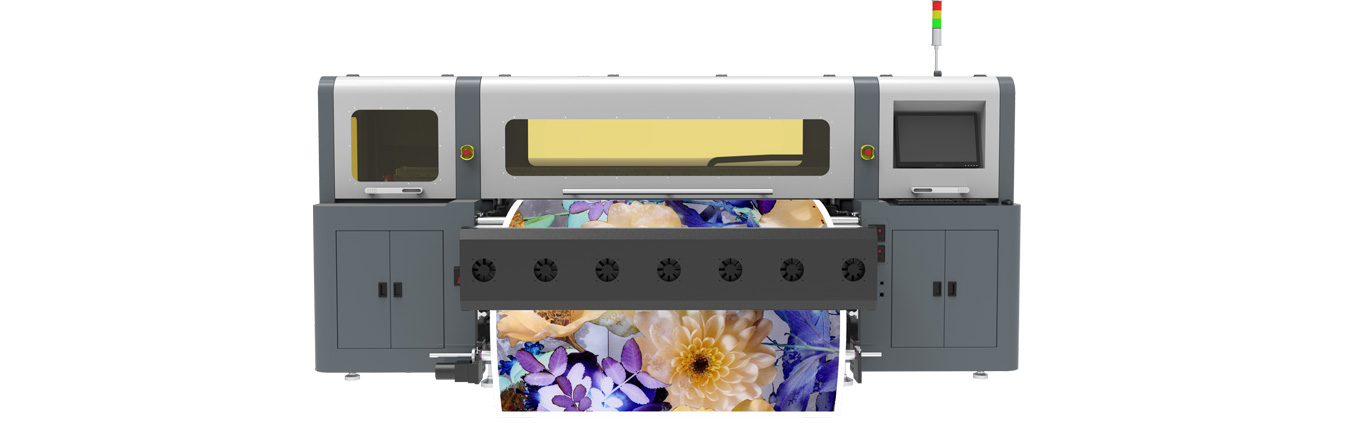

Video
