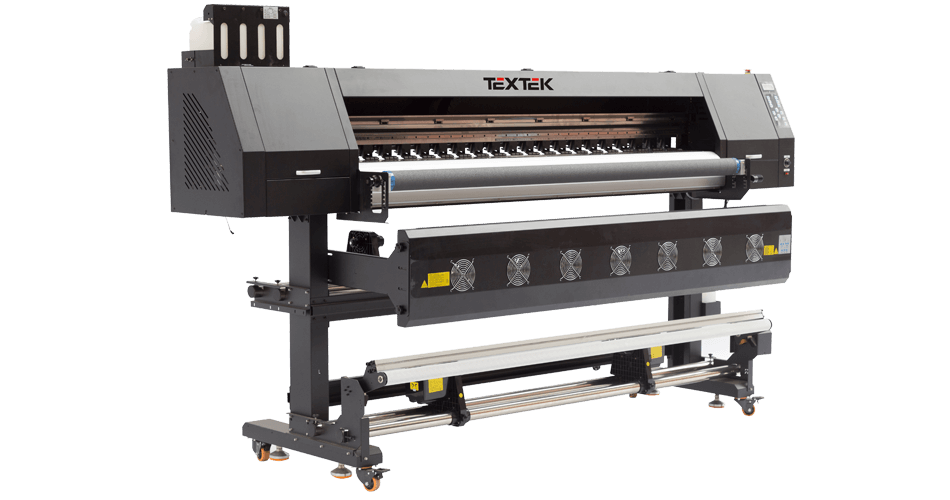

3 Heads & 1.8m Printer

Sublimation Fabric Printer TK-S1903

Printhead: 3*EPSON I3200-A1
Printing Speed: 75sqm/h
Print Width: 1800mm
Ink: Sublimation Ink
Ink Color: CMYK
RIP Software: Maintop, Photoprint

Feature

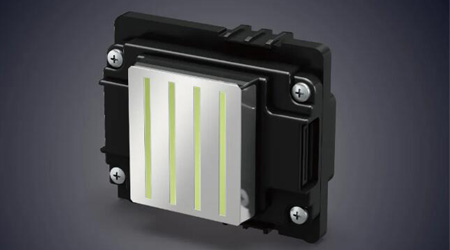

Epson print head, high precision, full color.

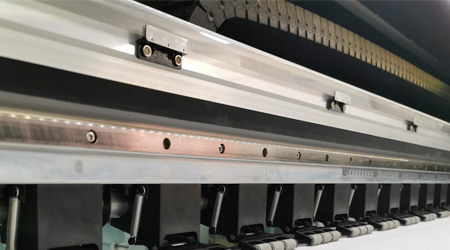

HIWIN silent guide rail, the car runs more smoothly.

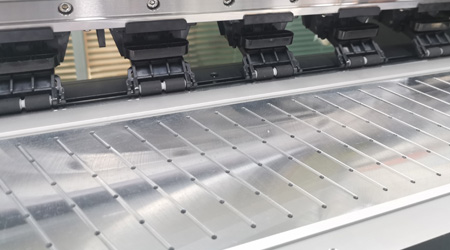

All-aluminum platform, high precision, ensure printing efficiency.

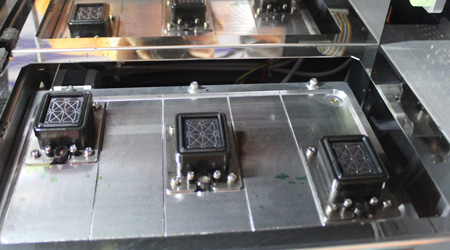

All-aluminum capping station, longer service life and more durable.

Two-level ink supply system to ensure continuous printing for a long time.

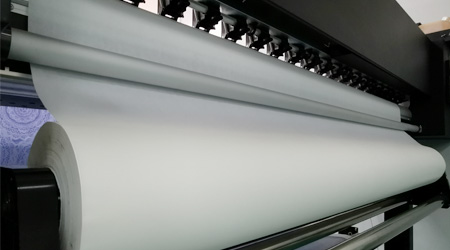

Constant tension retracting system to ensure printed material does not wrinkle.

Details

Specifically Designed Car

Anti-collision device, stop in time when encountering obstacles to protect printhead.

Paper Pressing Wheel

One-piece paper pressing wheel, can accurately adjust the place where the material is bulged.

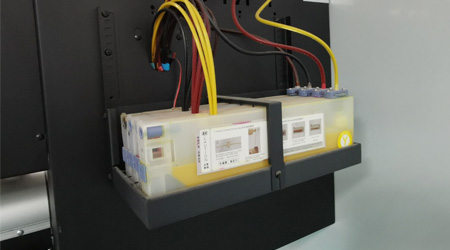

Large-capacity Ink Cartridges

CMYK sublimation ink, 4 color printing, reduce frequent ink refills.

Intelligent Air-heat Dryer

With adjustable temperature, quickly dries printed material.

Specification

Model	TK-S1903
Printhead	3*Epson I3200-A1/E1
Printing Speed	3 PASS: 75㎡/h 6PASS: 52㎡/h
Print Width	1830mm
Heating System	Pre-heater/Rear heater+(infrared and fan drying system+ mid-heater,optional)
RIP Software	Maintop/ Photoprint(optional)
Work Environment	Temperature:20-30℃ Humidity: 50-60%
Power	500W
Computer	WIN7 above 64 bits; CPU I5 processor above; 8G memory
Printer Size	29377501400mm
Package Size	3230950630mm

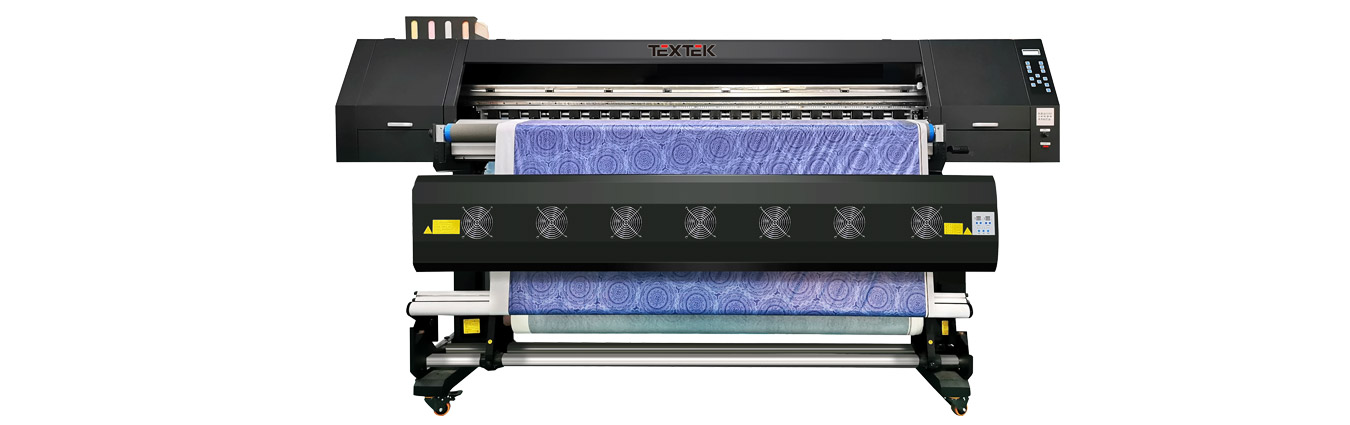

Video
