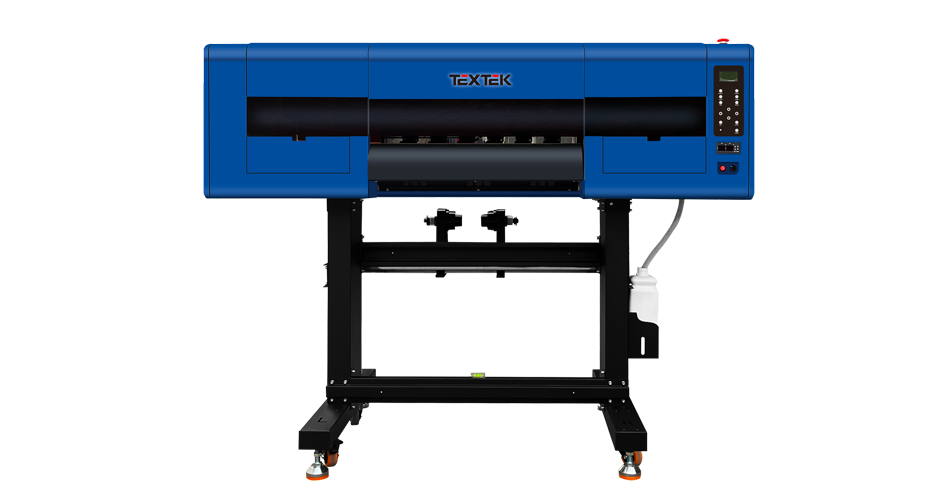

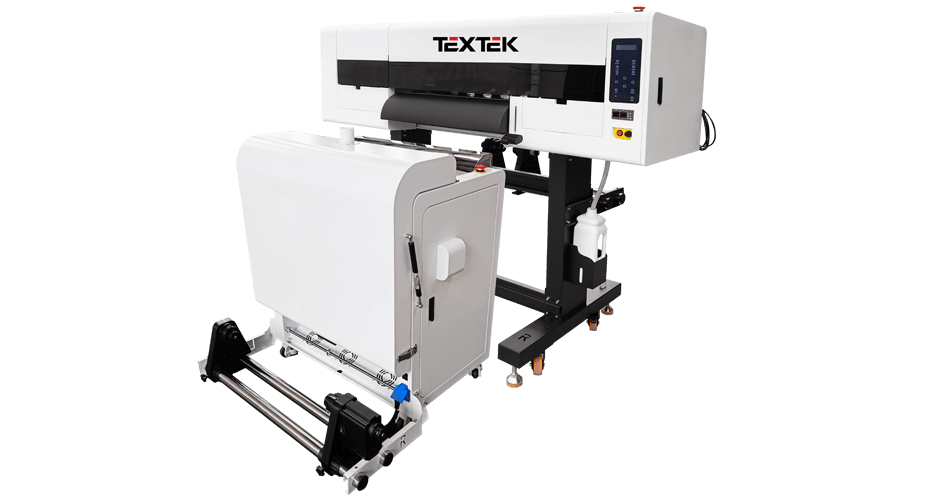

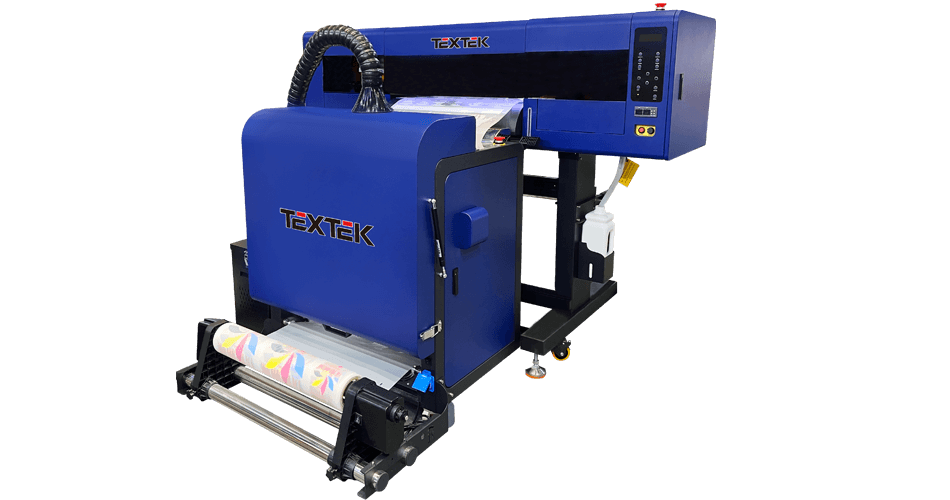

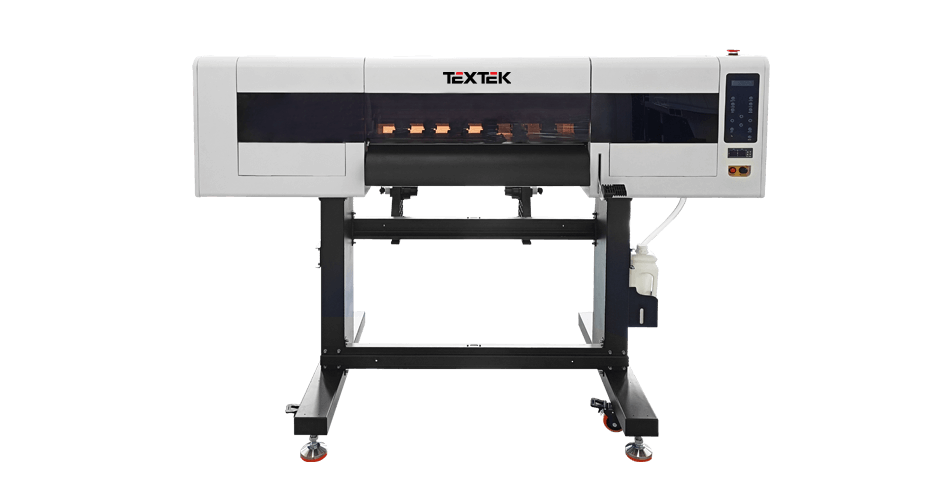

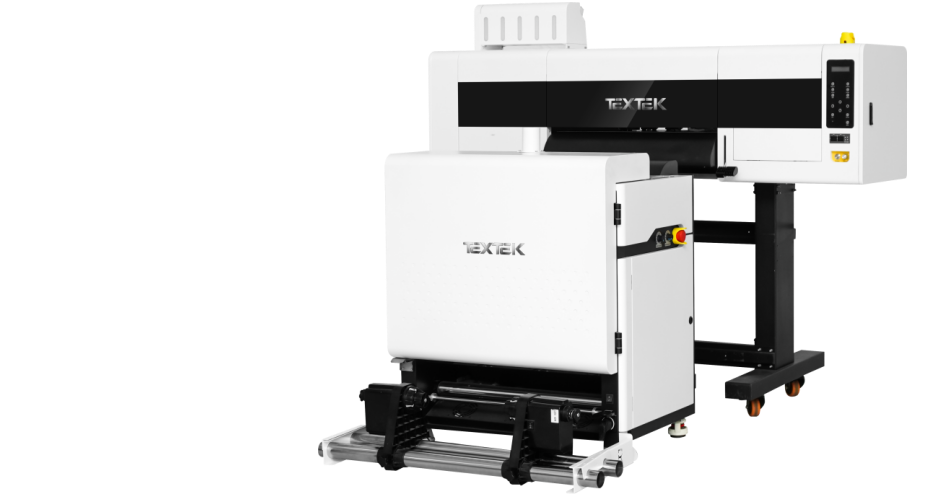

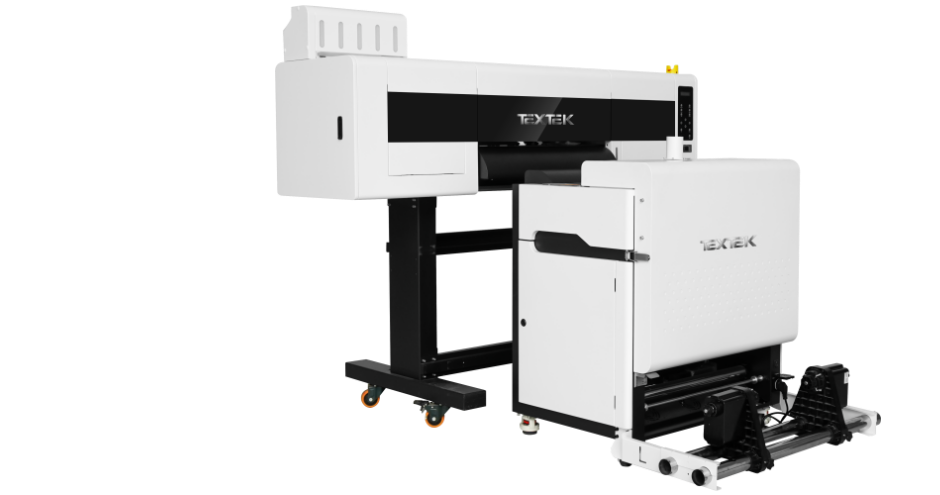

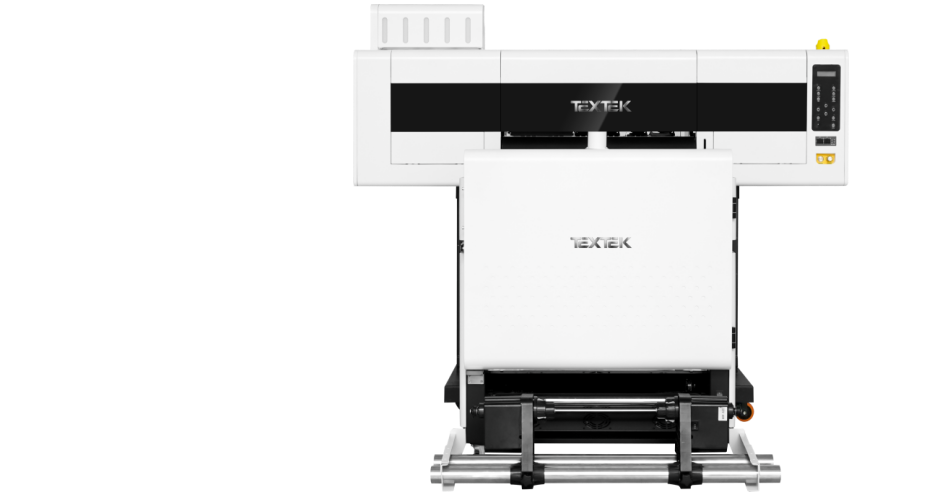

DTF-A603

DTF-A603 Printer print CMYK+W+more than 10 fluorescence color

Printhead: 3*EPSON I3200-A1/EPSON I1600-A1
Printing Speed: 12-15sqm/h
Print Width: 60cm(24 inch)
Feed Width: 60cm
Ink: Pigment Ink
Ink Color: CMYK+W+more than 10 Fluorescence Color Printing
RIP Software: RIIN/Flexiprint/CADlink/Maintop

Send Inquiry

Send Email

Feature Details Specification Video Application Inquiry

Feature

The DTF printer supports 3-head printing, can print CMYK+W+more than 10 fluorescence color.

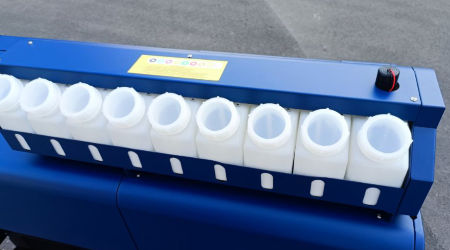

Equipped with 9 bulk ink tanks, check the ink remaining at any time, easy to add ink and easy to clean.

Equipped with high-precision guide rails, precise paper pressing, to ensure the stability of the printer's printed drawings.

DTF printer is equipped with a transparent ink tube, check the ink status, and indicate the color.

Selected high-quality raw material ink, the color is delicate, bright, the ink is smooth and odorless.

DTF printer fluorescent color printing, good color, high color saturation, high color fastness.

Details

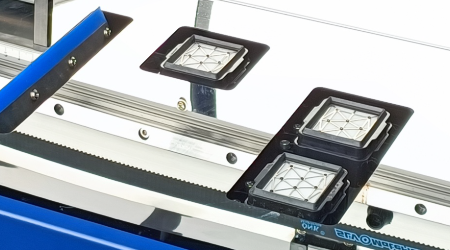

Equipped with anti-collision unit

Easy adjustment, precision correction, better protection of print head and stability of ink supply.

Ink-starving system

The ink shortage alarm system prevents the printhead from drying out, reducing losses and costs.

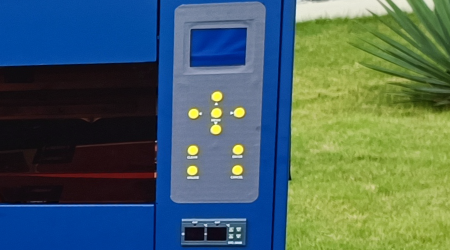

Key pad

DTF printer comes with a print button, making the operation more convenient.

White Ink Stirring Circulation System

Make the white ink not easy to block and the ink flow is good, and it is easier to clean.

Specification

Printer Model	DTF-A603 （60cm DTF Printer）
Printhead	3pcs EPSON I3200-A1	3pcs EPSON I1600-A1
Printing Speed	High speed mode 7201800DPI 6PASS 6m²/h 7202400DPI 8PASS 5m²/h High precision mode 7201800DPI 6PASS 5m²/h 7202400DPI 8PASS 4m²/h	720900DPI 6PASS 4m²/h 7201200DPI 8PASS 3m²/h 7201800DPI 12PASS 2m²/h 720900DPI 6PASS 4m²/h 7201200DPI 8PASS 3m²/h 7201800DPI 12PASS 2m²/h


Printing Width	600mm/ 24inch
Ink	4C+Fo+Fm+Fy+Fg+W
Print Media	PET Film
Heating System	Front and Back Independent Heater
Transmission Interface	Gigabit LAN
RIP Software	Riin/Flexiprint/Cadlink/Maintop
Image Format	BMP, JPG, TIFF, EPS, PDF...
Computer System	Windows XP/Win7/Win8/Win10
Power Supply	110V/220V, 50/60 HZ, 10A Sleeping:45W, Standby:85W, Working:350W
Work Environment	TEMP.:20℃-30℃ Humidity:35%-65%

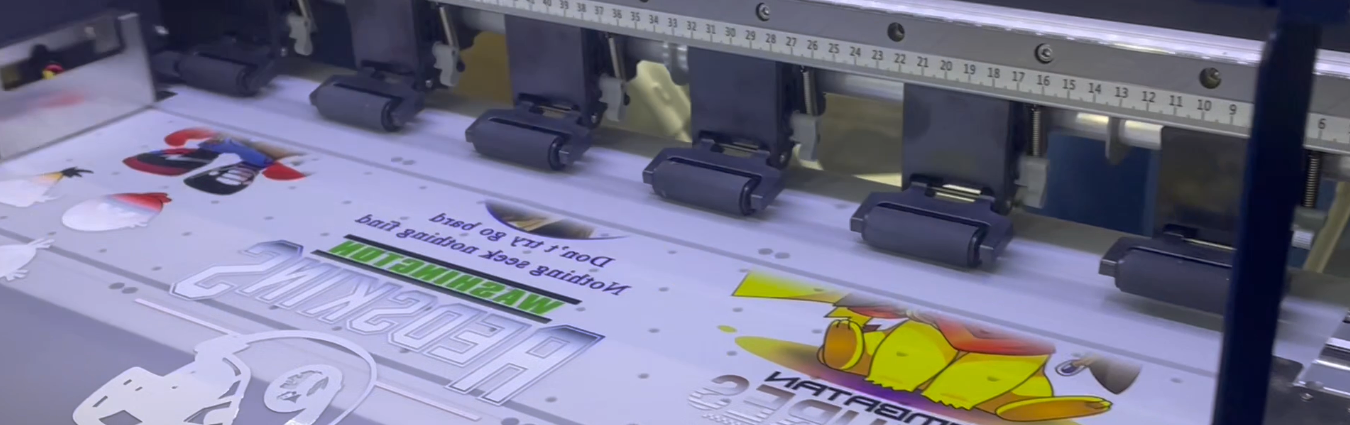

Video
