UV-6090T

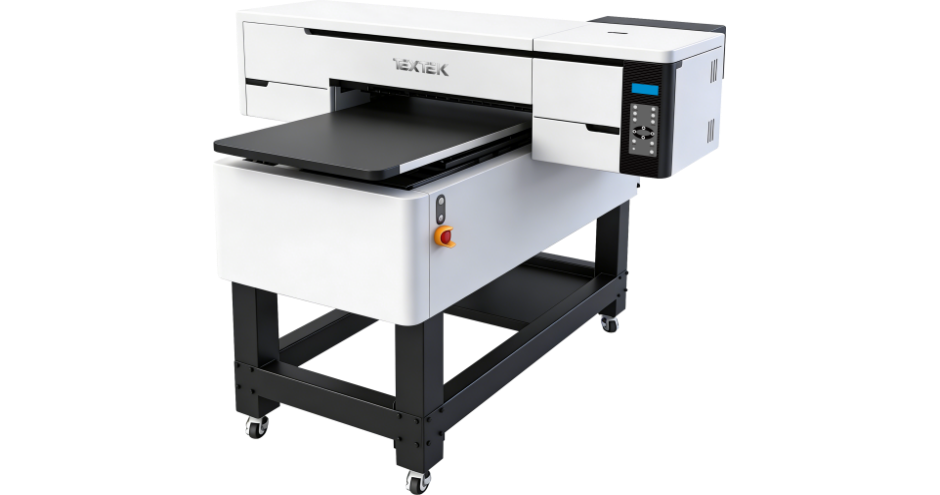

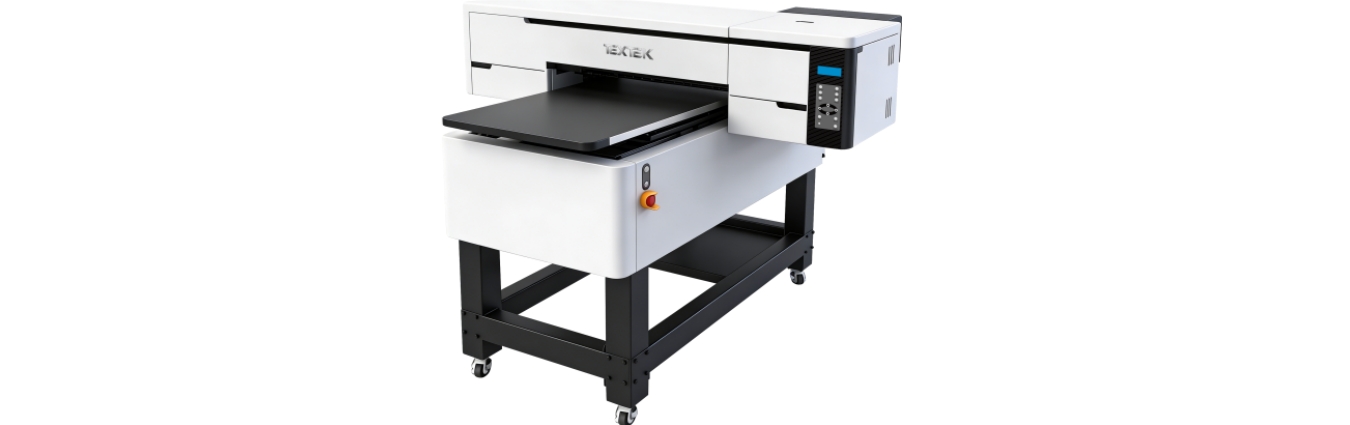

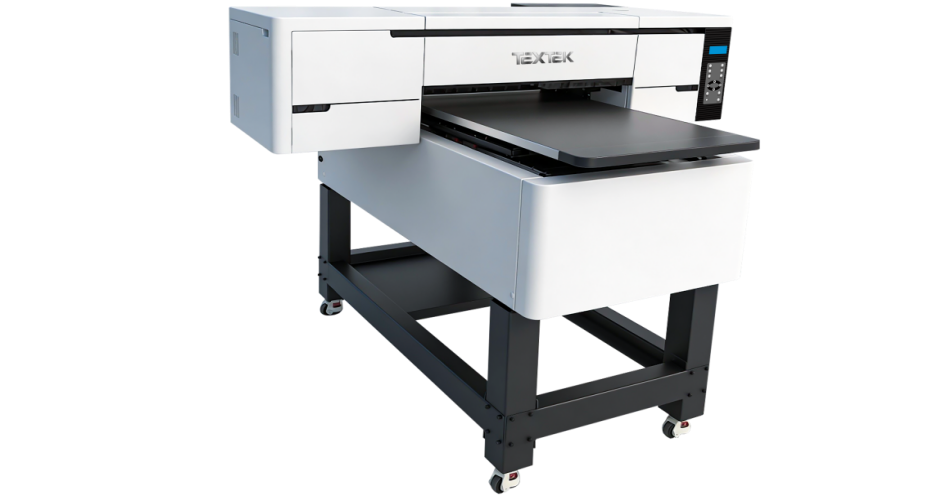

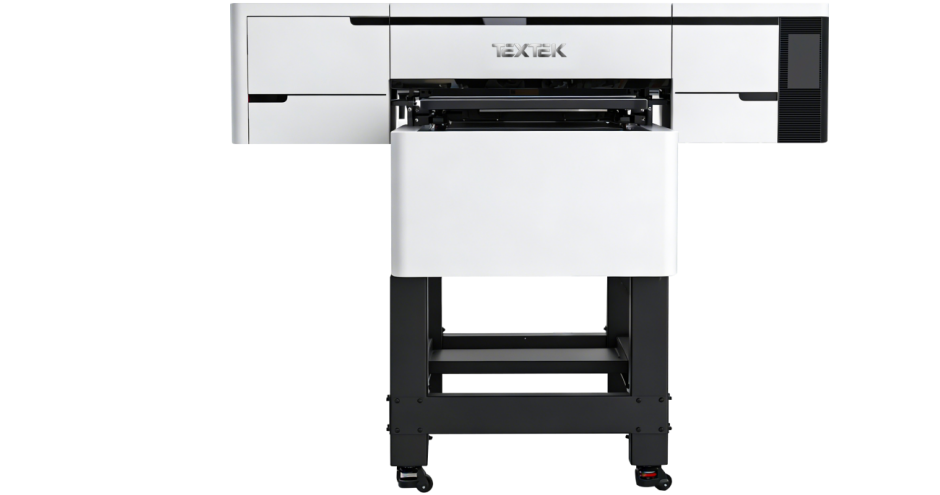

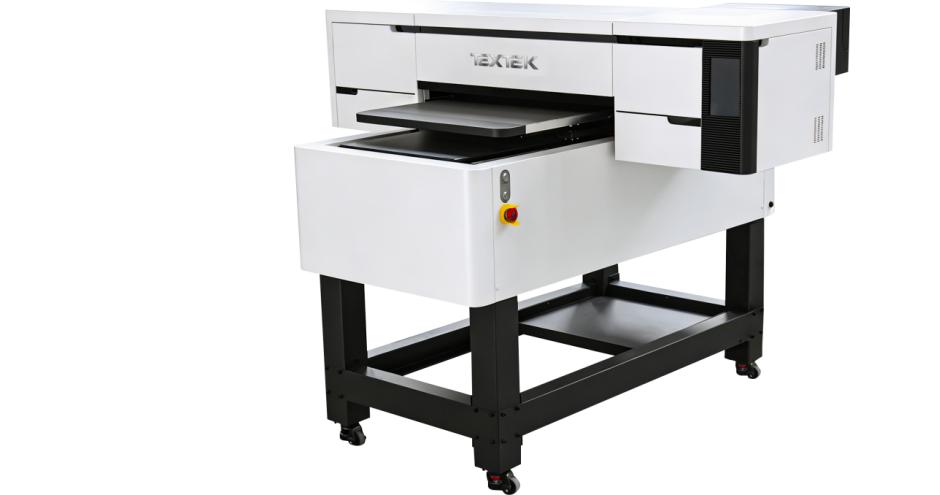

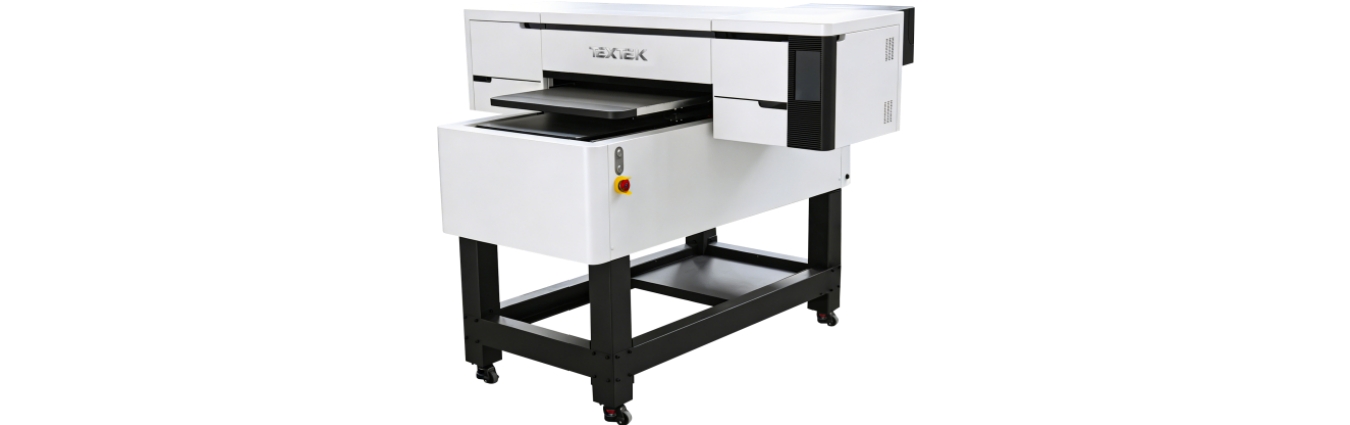

Flatbed UV Printer 6090T

Printhead: 3*Epson 13200-U1
Printing Speed: 720*1800DPI 6PASS 7.5m²/h
720*2400DPI 8PASS 5.4m²/h
720*3600DPI 12PASS 3.7m²/h
Maximum Print Size: 600*900mm
Medium Thickness: 160mm
Ink Color: Standard: CMYK+W+V
RIP Software: RIIN/Maintop/Flexiprint/NeoStampa
Machine Size/Weight: 1700*1545*1315mm 240kg
Packaging Size/Weight: 1880*1625*870mm 315kg

Send Inquiry

BROCHURE

Feature Details Specification Video Inquiry

Feature

CCD Visual Positioning System

Ink Standard Color: CMYK+W+V

UV LED Air Cooling

Automatic Infrared Height Measurement

600x900mm Print Area

Medium Thickness 160mm

Details

Dual servo motors

Euipped with 2 servo motors

Static elimination device

Equipped with an anti-static bar to effectively eliminate static electricity from printed materials.

Print any item

Offers exceptional quality on flat and curved surfaces and can print on a variety of materials (acrylic, metal, wood, etc.)

High resolution

With a resolution of up to 3600 DPI and a speed of 7.5 m²/h, it ensures both speed and quality.

Specification

Model	UV Printer 6090T
Nozzle Model	3*Epson13200-U1
Printing Speed	7201800DPI 6PASS 7.5m²/h 7202400DPI 8PASS 5.4m²/h 720*3600DPI 12PASS 3.7m²/h
Maximum Print Size	600*900mm
Medium Thickness	160mm
Curing Mode	LED Air cooling
Ink Color	Standard: CMYK+W+V
RIP Software	RIIN/Maintop/Flexiprint/NeoStampa
Print Media	Glass, plates, various signs, crystal, PVC, acrylic, leather plastic, etc.
Photo Format	TIFF, JPEG, PDF, EPS, PNG, AI, BMP
Computer Configuration	Win 10/64-bit system
Transmission Interface	Gigabit network port
Rated Voltage/Power	220V 50HZ~60HZ 400W
Work Environment	Temperature: 18℃~28℃ Humidity: 40%~60%
Machine Size/Weight	170015451315mm 240kg
Packaging Size/Weight	192016601020mm 391kg
