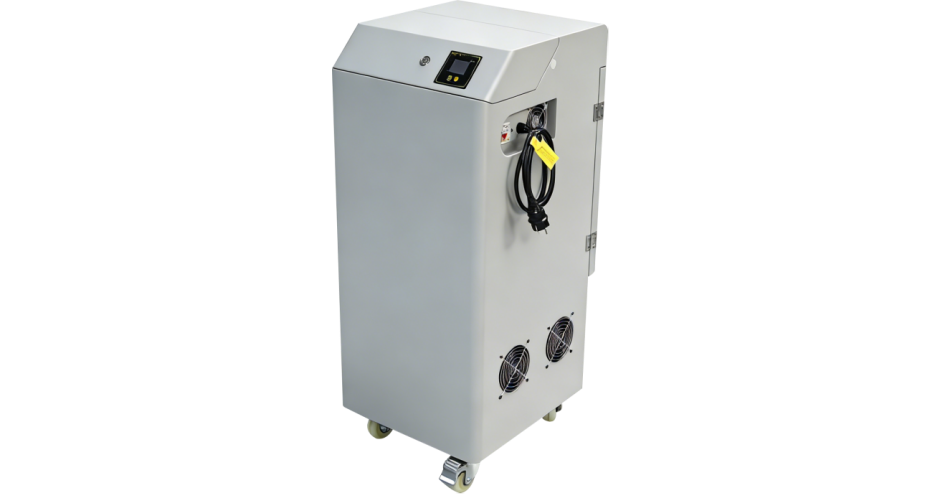

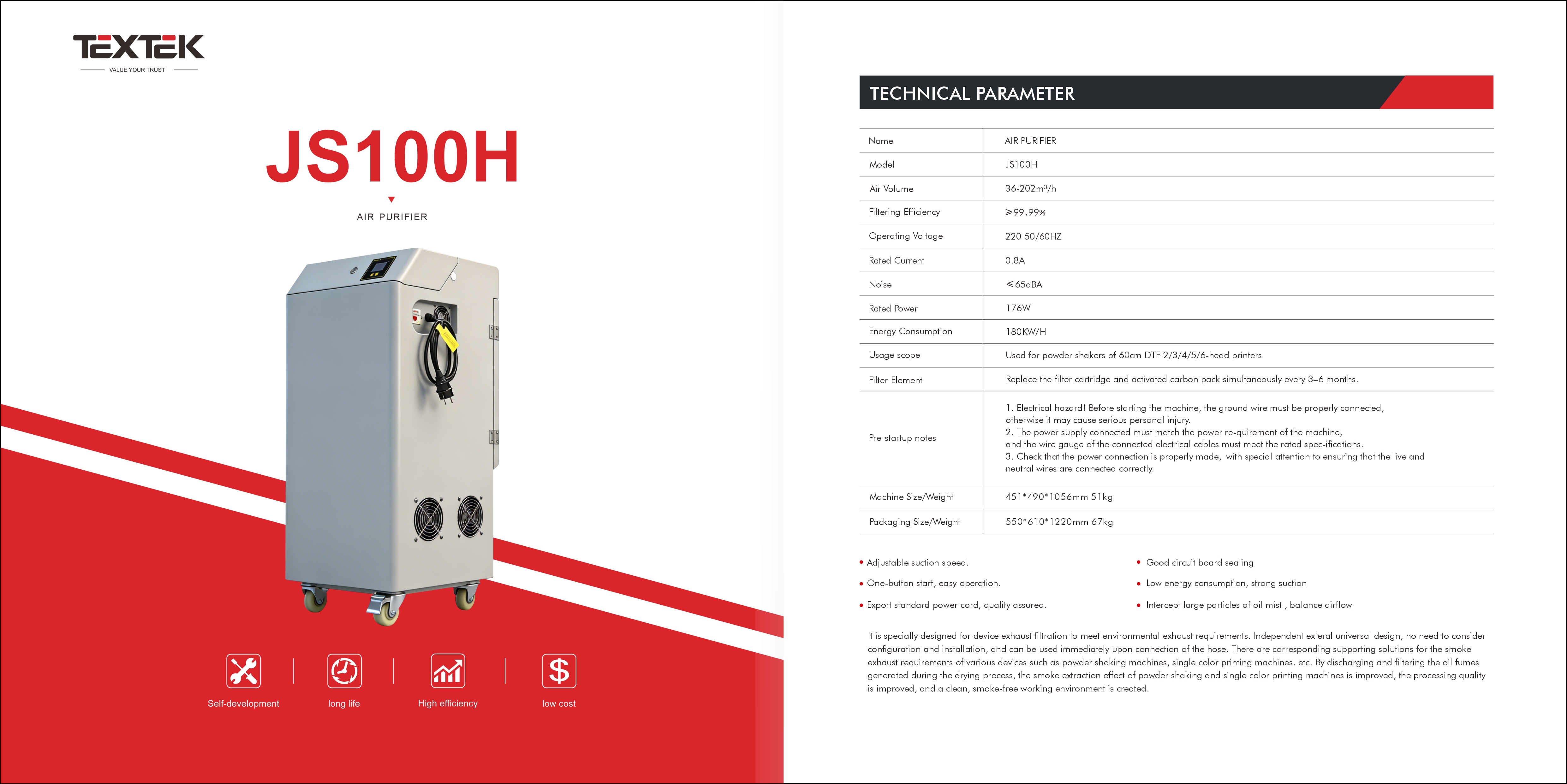

| Model | DTF Air Purifier JS100H |
| Air Volume | 36-202 m³/h |
| Filtering Efficiency | ≥99.99% |
| Operating Voltage | 220V 50/60HZ |
| Rated Current | 0.8A |
| Noise | ≤65 dBA |
| Rated Power | 176W |
| Energy Consumption | 180 KW/H |
| Usage Scope | For powder shakers of 60cm DTF 2/3/4/5/6-head printers |
| Filter Element | Replace filter cartridge and activated carbon pack every 3-6 months |
| Machine Size | 451×490×1056 mm 51 kg |
| Packaging Size | 550×610×1220 mm 67 kg |
| Features | Adjustable suction speed One-button start, easy operation Export standard power cord, quality assured Good circuit board sealing Low energy consumption, strong suction Intercept large particles of oil mist, balance airflow |
| Product Description | It is specially designed for device exhaust filtration to meet environmental exhaust requirements. Independent external universal design, no need to consider configuration and installation, and can be used immediately upon connection of the hose. There are corresponding supporting solutions for the smoke exhaust requirements of various devices such as powder shaking machines, single color printing machines, etc. By discharging and filtering the oil fumes generated during the drying process, the smoke extraction effect of powder shaking and single color printing machines is improved, the processing quality is improved, and a clean, smoke-free working environment is created. |
| Safety Precautions | 1. Electrical hazard! Before starting the machine, the ground wire must be properly connected, it may cause serious personal injury. 2. The power supply connected must match the power requirement of the machine, and the wire gauge of the connected electrical cables must meet the rated specifications. 3. Check that the power connection is properly made, with special attention to ensuring that the live and neutral wires are connected correctly. |
