DTF-A30 V3

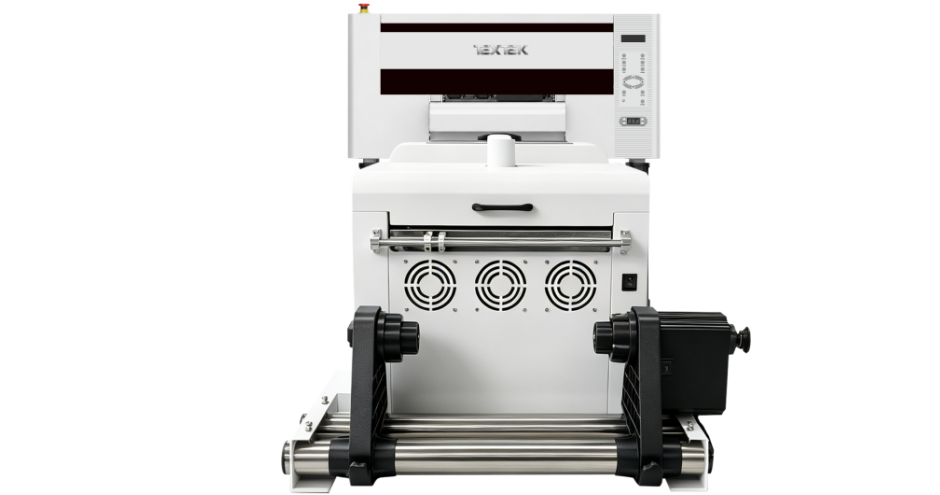

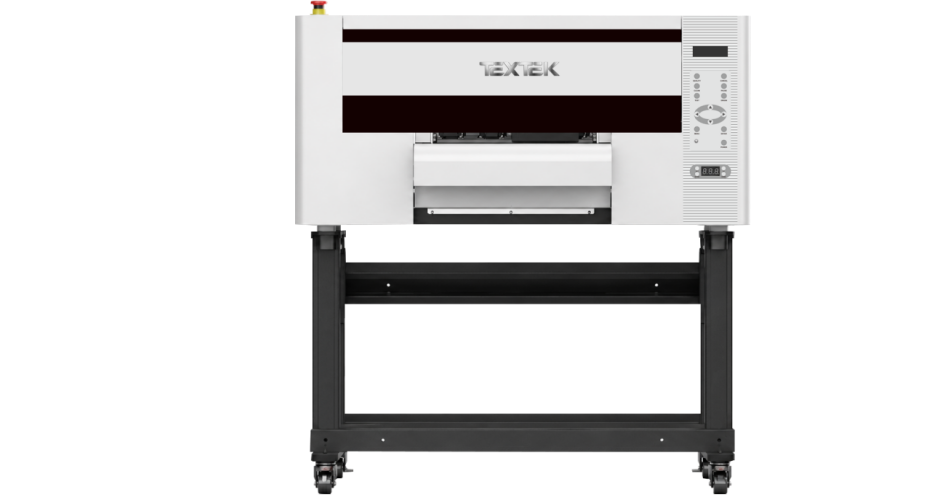

A3 Direct to film printer

Printhead: 2*EPSON I1600-A1
Printing Speed: 960*900DPI 6PASS 5sqm/h, 960*1200DPI 8PASS 4sqm/h, 960*1800DPI 12PASS 3sqm/h
Max Printing Size: 330mm
Printing Color: CMYK+W
RIP Software: RIIN/Flexiprint/CADlink/Maintop/NeoStampa

Send Inquiry

BROCHURE

Feature Specification Inquiry

Feature

2 EPSON I1600-A1 Print heads.

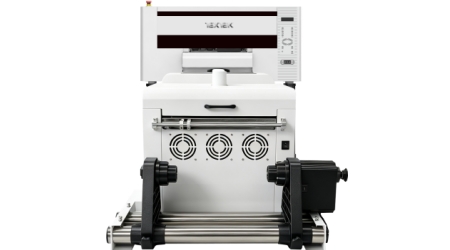

Auto feeding and take-up

Small footprint and low cost.

High color fastness, not easy to fall off, and washable.

Auto ink supply/white ink circulating

Ink shortage alarming

Specification

Model		DTF-A30 V3 (A3 DTF Printer)
Nozzle Model		2 EPSON I1600-A1
Printing Speed	High speed mode	960900DPI 6PASS 5m²/h 9601200DPI 8PASS 4m²/h 960*1800DPI 12PASS 3m²/h
	High precision mode	960900DPI 6PASS 4m²/h 9601200DPI 8PASS 3m²/h 960*1800DPI 12PASS 2m²/h
Color		CMYK+W
Max Printing Size		330mm
RIP Software		RIIN/Flexiprint/CADlink/Maintop/NeoStampa
Media Transfer		Auto feeding and take-up system
Heating Device		Front and Back Heating
Ink Road System		Automatic Ink Supply, White Ink Circulating and Stirring
Power Electric Supply		220V 50-60 HZ, 150W/1500W
Working Environment		Temperature 20-30℃ Humidity 35-65ph
Machine Size/Weight		Printer: 940762503mm 80kg Powder Shaker: 640932577mm 45kg
Package Size/Weight		Printer: 1080650660mm 107kg Powder Shaker: 800600720mm 56kg
