| Parameter | Specification |
|---|---|
| Model | UV-A5 |
| Machine Size/Weight | 600×410×450mm / 40kg |

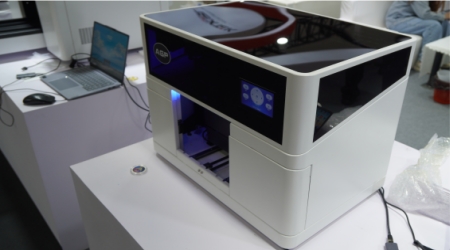

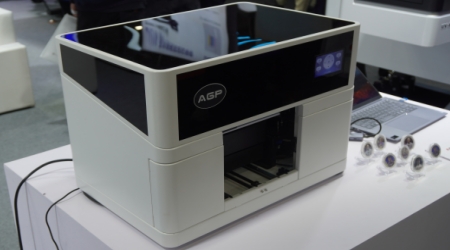

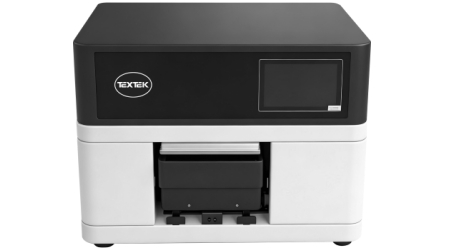

| Applications | Metals, ceramics, plastics, glass, cylindrical objects, roll-to-roll materials, etc. |
| Print Media | Glass, plates, various signs, crystal, PVC, acrylic, leather, plastic, etc. |
| Print Width | 180×200mm (A5) |

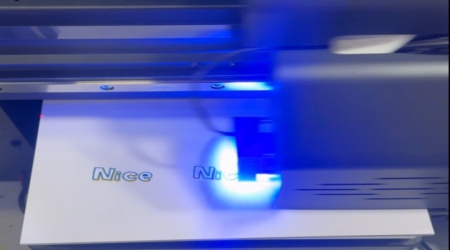

| Media Thickness | 1mm ~ 90mm |

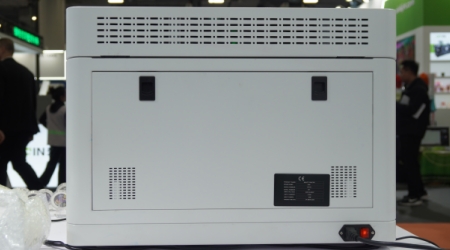

| Color Configuration | CMYK + W (White) |

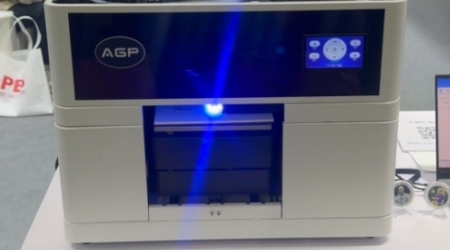

| Ink Type | Environmentally friendly UV curing ink |
| RIP Software | RIIN / Flexiprint / NeoStampa |
| Photo Format | TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc. |
| Rated Voltage/Power | 220V 50HZ~60HZ 85W |
| Printhead | 1×DX7 / F1080 (Optional) |
| Work Environment | Temperature: 18°C~28°C / Humidity: 40%~60% |

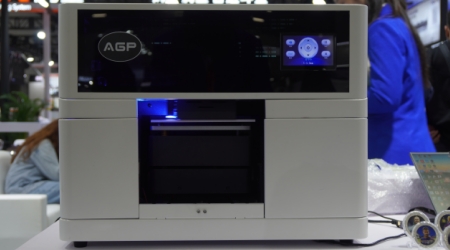

| Mode | WC Mode (DX7) | C Mode (DX7) |
|---|---|---|
| High Speed | 2.44 min/A5 | 1.23 min/A5 |
| Regular | 5.22 min/A5 | 2.45 min/A5 |
| High Precision | 8.11 min/A5 | 3.44 min/A5 |
