DTF-TK1600

1600mm DTF Printer with 5/6 Epson I3200-A1 Printheads

Printhead: 5/6 EPSON I3200-A1
Number of Printheads: 5/6
Print Width: 1600 mm
Print Colors: 3CMYK+2W (5 printheads)
2CMYK+ 2W+2Fluo / 2CMYK+2W+2ORGB (6 printheads)
Print Speed: 720 × 1800 DPI 6 PASS 48 m²/h
RIP Software: RIIN/Flexiprint/CADlink/NeoStampa
01
Feature
01
Supports CMYK and white ink configurations, with optional fluorescent colors for vibrant and eye-catching DTF transfers.
Automatically collects and returns excess hot-melt powder, helping reduce material waste and maintain a cleaner production process.
02
Automatically collects and returns excess hot-melt powder, helping reduce material waste and maintain a cleaner production process.
Automatically collects and returns excess hot-melt powder, helping reduce material waste and maintain a cleaner production process.
03
An intuitive multilingual touchscreen makes machine operation and parameter adjustments more convenient.
An intuitive multilingual touchscreen makes machine operation and parameter adjustments more convenient.
04
The integrated air cooling system helps dissipate heat and supports stable machine operation.
The integrated air cooling system helps dissipate heat and supports stable machine operation.
05
Automatic ink supply with white ink circulation and stirring helps maintain consistent ink delivery and reduce white ink sedimentation.
Automatic ink supply with white ink circulation and stirring helps maintain consistent ink delivery and reduce white ink sedimentation.
06
The automatic feeding and take-up system, combined with dual correction mechanisms, helps maintain smooth and aligned film feeding.
The automatic feeding and take-up system, combined with dual correction mechanisms, helps maintain smooth and aligned film feeding.
02
Details
1600mm Printing Width
1600mm Printing Width
Dual Film Correction System
Dual Film Correction System
5/6 Epson I3200-A1 printheads
5/6 Epson I3200-A1 printheads
Front, Middle and Rear 3-Zone Heating
Front, Middle and Rear 3-Zone Heating

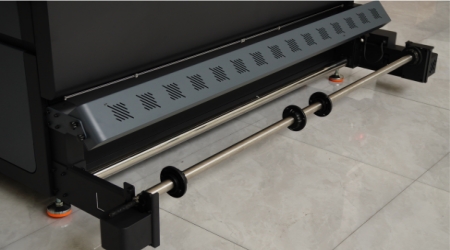

Automatic Feeding and Take-Up System
Automatic Feeding and Take-Up System
Automatic Ink Supply with White Ink Circulation and Stirring
Automatic Ink Supply with White Ink Circulation and Stirring
03
Specification
Printer Model DTF-TK1600 (1600 mm DTF Printer)
Printhead 5 EPSON I3200-A1 6 EPSON I3200-A1
Print Speed Draft Mode
720×1800 DPI  6 PASS  48 m²/h

High speed mode
720×1800 DPI  6 PASS  37 m²/h

High precision mode
720×1800 DPI  6 PASS  28 m²/h
Draft Mode
720×1800 DPI  6 PASS  29 m²/h;
720×2400 DPI  8 PASS   23 m²/h

High speed mode
720×1800 DPI  6 PASS  21 m²/h
720×2400DPI  8PASS  17 m²/h

High precision mode
720×1800 DPI  6 PASS  14 m²/h
720×2400 DPI  8 PASS  12 m²/h
Print Width 1600 mm
Print Colors 3CMYK+2W (5 printheads)
2CMYK+ 2W+2Fluo / 2CMYK+2W+2ORGB (6 printheads)
Print Media Auto-feeding and take-up system
Heating System Front/middle/rear 3-stage heating
Ink System Auto ink supply, white ink circulating and stirring
RIP Software RIIN/Flexiprint/CADlink/NeoStampa
Power Supply 110 V/220 V 50-60HZ  510 W/9000 W
Work Environment Temperature: 20℃-30℃  Humidity: 35%-65%
Machine Size/Weight Printer: 2970×850×1565 mm  271 kg
Powder Shaker: 2160×2090×967 mm  470 kg
Packaging Size/Weight Printer: 3130×760×870 mm 355.5 kg
Powder Shaker: 2120×1670×1140 mm 560 kg
