UV3040 printer

uv printer
uv-3040 flatbed printer

UV3040

UV3040 Flatbed Printer

Printhead: EPSON l3200-U1 HD Printhead
Printing Speed: 0.28m²/h~3m²/h
Print Width: Platform:297*420mm

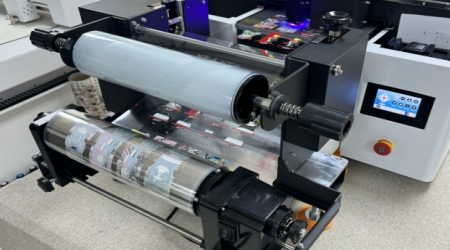

Roll to roll device: supporting roll width 30-290mm, diameter 150mm
Inner core diameter:76mm
Rotary device: supporting cylinder length 20-230mm, diameter 30-90mm
Ink: Environmental friendly UV curing ink
Machine size: L/W/H: 825mm*1019mm*612mm 80KG
Print Media: Glass, plates, various signs, crystal, PVC, acrylic, leather plastic,etc.
Print Media Thickness: 1mm~90mm
Color Configuration: Standard: CMYK+W+V
Optional: YMCK LC LM+W
RIP Software: Maintop/Flexiprint/RIIN
01
Feature
01
Small size, saving space

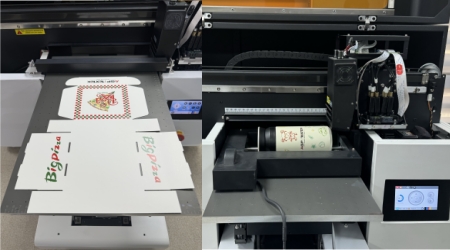

Plane and cylinder can be printed
02
Plane and cylinder can be printed
Plane and cylinder can be printed
03
Use Epson I3200-U1 HD Printhead
Use Epson I3200-U1 HD Printhead
04
One printhead can achieve CMYK+W+V output
One printhead can achieve CMYK+W+V output
05
High-speed connectivity and storage
High-speed connectivity and storage
06
Suitable for all kinds of personalized customization
Suitable for all kinds of personalized customization
03
Specification
Model UV3040
Nozzle Model EPSON I3200-U1 HD Printhead
Printing Speed 0.28m²/h~3m²/h
Color Standard: CMYK+W+V Optional: YMCK LC LM+W
Print Width Platform:297*420mm Roll to roll device: supporting roll width 30-290mm, diameter 150mm
Inner core diameter:76mm
Rotary device: supporting cylinder length 20-230mm, diameter 30-90mm
Printing Media Glass, plates, various signs, crystal, PVC, acrylic, leather plastic,etc.
Photo Format TIFF,JPEG, PDF, EPS,PNG, Al,BMP, etc.
Computer Configuration Win10/64-bit system
Transmission Interface Gigabit network port, hard disk 500G above
Machine Size/Weight  L/W/H: 1020mm*830mm*615mm 114kg
Packaging Size/Weight 1130*910*760mm 124kg
Work Environment T:18°C~28°C,H: 40%~60%
Powder supply 220V 50/60Hz(auto switching) Sleeping:30W, Working:500W


04
Video
