DTF OVEN A380/A280

60cm/30cm DTF OVEN

Model: 600mm/300mm DTF OVEN
Media width: Max: 631.5mm*450mm/300mm*400mm
Application: 600mm/300mm DTF film, ink and powder fuse curing
Control: Temperature & time setup, PID control
Electrical parameters: Voltage: 220V, Current: 7.3A, Rated power: (A380)1600W; (A280)1000W
Machine Size: (A380)785mm*540mm*269mm 28kg / (A280)490*450*110mm 11.6kg
Packaging Size/Weight: (A380)1170mm*700mm*280mm 29.5kg / (A280)600*400mm*155mm, 12.6kg

Send Inquiry

BROCHURE

Feature Specification Inquiry

Feature

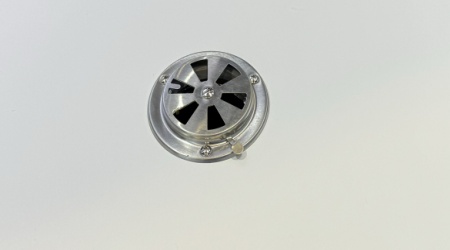

Adjustable smoke exhaust size

Anti scalding, breathablemesh added, anti adhesion

Baking time, temperature, and visual adjustment settings

Anti scalding, breathable mesh added, anti adhesion（A380）

Two sizes available: 30cm and 60cm

Upper and lower zone heating

Specification

Model	600mm/300mm DTF OVEN
Media width	Max: 631.5mm450mm/300mm400mm
Application	600mm/300mm DTF film, ink and powder fuse curing
Control	Temperature & time setup, PID control
Electrical parameters	Voltage: 220V, Current: 7.3A, Rated power: (A380)1600W; (A280)1000W
Machine Size	(A380)785mm540mm269mm 28kg / (A280)490450110mm 11.6kg
Packaging Size/Weight	(A380)1170mm700mm280mm 29.5kg / (A280)600400mm155mm, 12.6kg
