UV DTF-F604

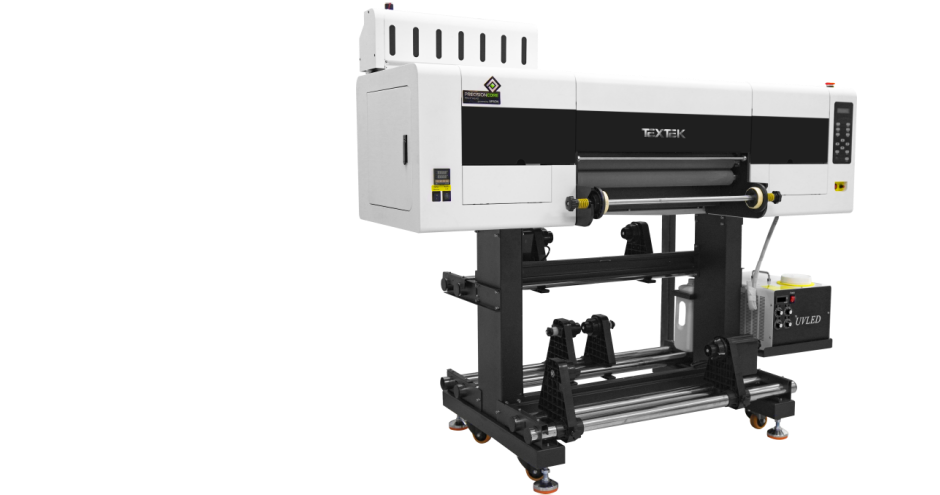

UV-F604 DTF Printing Machine

Printhead: 4*EPSON I3200-U1
Printing Speed: 6PASS 6m²/h
8PASS 6m²/h
12PASS 2-6㎡/h
Print Width: Max 700mm
Printing Color: CMYK+W+V+G
Machine size: L/W/H: 1785mm*823mm*1589mm
Printing Media: UV AB film
Printing platform: High-precision aviation aluminum
Weight: 270KG
RIP Software: RIIN/Flexiprint/CADlink/Maintop/NeoStampa

Send Inquiry

Feature Details Specification Video Application Inquiry

Feature

G+CMYK+W+V

Anti-collision system

HIWIN guide rail

Back feed-in system

Water-cooling UV LED

Laminating device

Details

The upper cover of UV-F604 cap station and the left cover of the platform adopt frosted surface

The upper cover of the UV-F604 cap station and the cover on the left side of the platform adopt a frosted surface to avoid ink curing and damage to the print head

Printer overall cover

The printer is easy to operate, and the overall cover of the machine can reduce the adhesion of dust during the printing process and ensure the printing quality

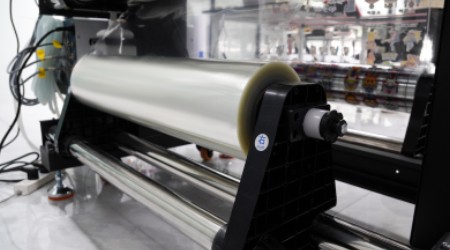

Printing and laminating all-in-one machine

Printing and laminating all-in-one machine to improve productivity

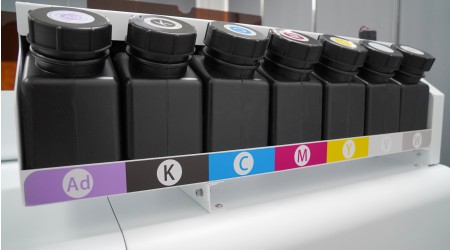

White ink circulation peristaltic pump

Prevent white ink from settling, and produce better results

Specification

Model	UV-F603
Nozzle Model	3*EPSON I3200-U1
Printing Speed	High speed mode: 7202400DPI 8PASS 6m²/h; 7203600DPI 12PASS 4m²/h High precision mode 7201800DPI 6PASS 6m²/h 7202400DPI 8PASS 5m²/h 720*3600DPI 12PASS 3m²/h
Color	G+W+CMYK+V
Printing Format	600mm
Printing Media	UV ABfilm
Resolution	6/8/12PASS
Ink supply system	White ink circulation and stirring
UV light curing system	Water cooler+UV LED lamp(to ensure long-term high-intensity operation)
Machine size	L/W/H: 1785mm823mm1589mm
Lamination	Integrated automatic laminator
Power Supply	220V 50-60HZ Sleeping:45W, Standby:1100W, Working:2000W
Software	RIIN/Flexiprint/CADlink/Maintop/NeoStampa

Model	UV-F604
Nozzle Model	4*EPSON I3200-U1
Printing Speed	High speed mode 7202400DPI 8PASS 6m²/h 7203600DPI 12PASS 4m²/h High precision mode 7201800DPI 6PASS 6m²/h 7202400DPI 8PASS 5m²/h 720*3600DPI 12PASS 3m²/h
Color	G+W+CMYK+V
Printing Format	600mm
Printing Media	UV ABfilm
Resolution	6/8/12PASS
Ink supply system	White ink circulation and stirring
UV light curing system	Water cooler+UV LED lamp(to ensure long-term high-intensity operation)
Machine size	L/W/H: 1785mm823mm1589mm
Package/Weight	2330840840mm 289kg
Lamination	Integrated automatic laminator
Power Supply	220V 50-60HZ Sleeping:45W, Standby:1100W, Working:2000W
Software	Maintop/RIIN/Flexiprint/Cadlink
