DTF-A30

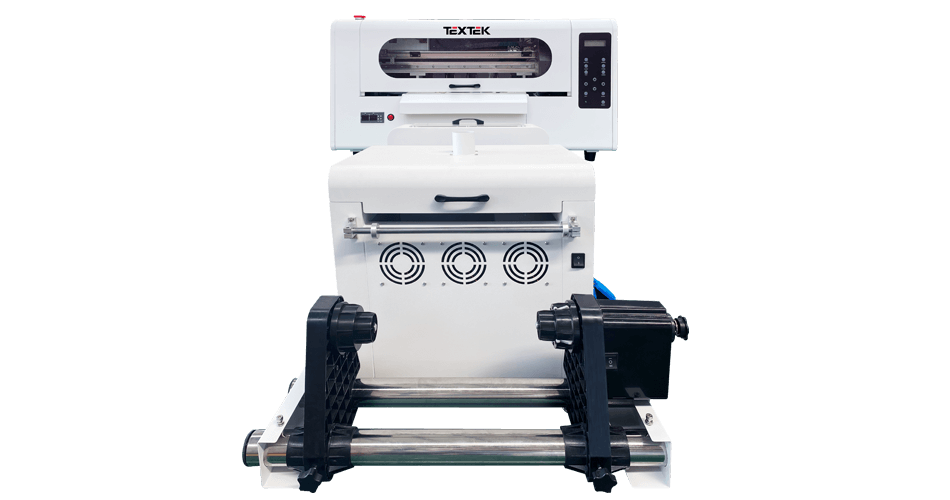

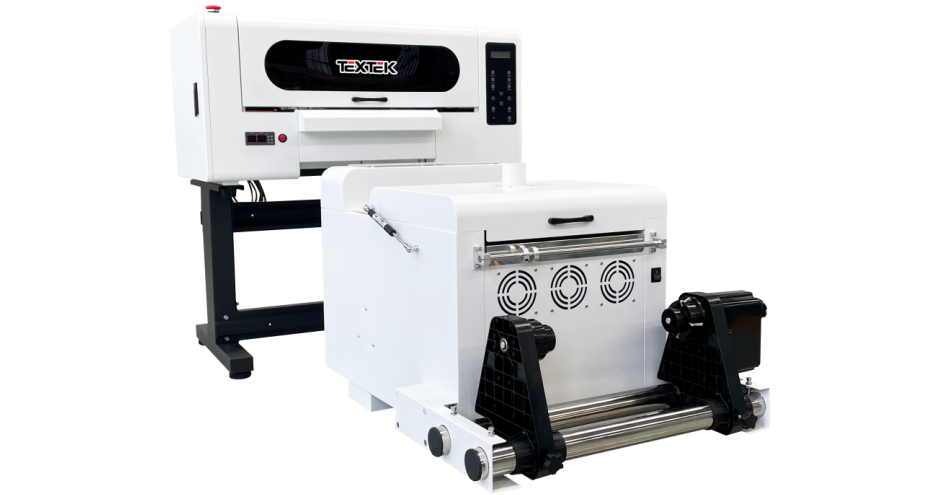

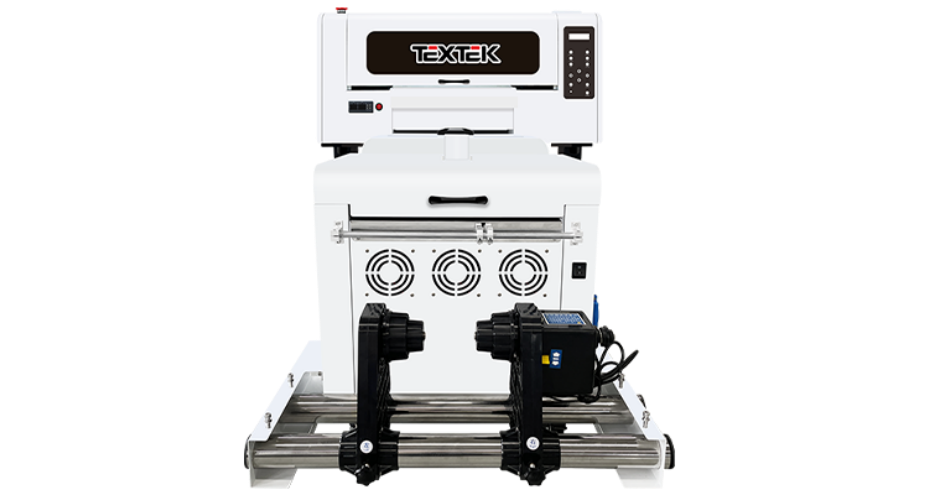

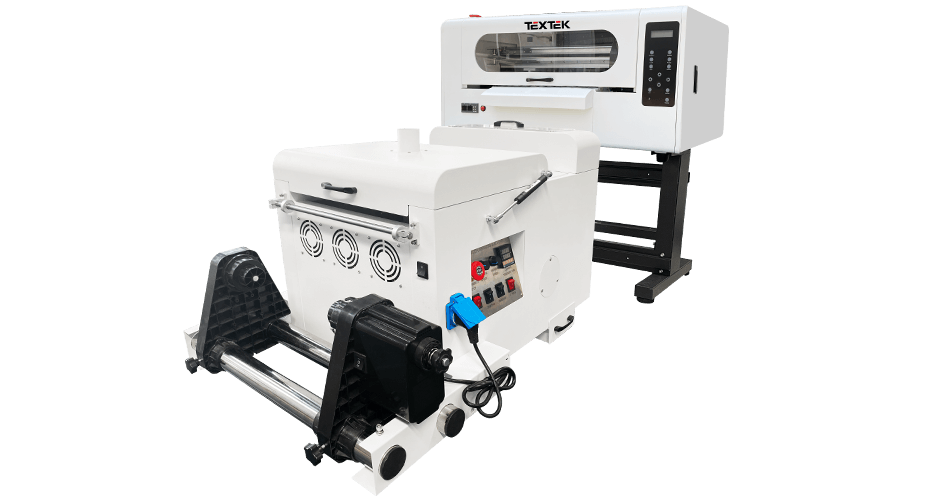

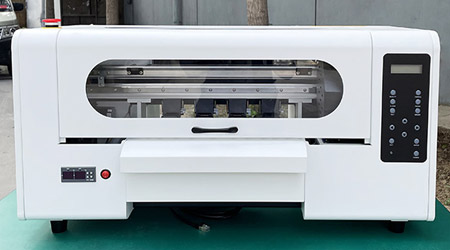

DIY DTF Film Printer DTF-A30

Printhead: 2*EPSON F1080
Printing Speed: 4.5sqm/h
Print Width: 30cm(12 inch)
Ink: CMYK+W Pigment Ink
Ink Color: 4C+W or 6C+W Printing(Lc/Lm/Fo/Fg as option)
RIP Software: RIIN/Flexiprint/CADlink/Maintop/NeoStampa

Send Inquiry

Feature Details Specification Video Application Inquiry

Feature

Support 6-color printing, color is fuller.

Small footprint and low cost.

Can print a variety of colors and fabrics.

High color fastness, not easy to fall off, and washable.

Simple operation, the best printers for T Shirt DIY printing.

White ink circulation system to filter impurities and prevent clogging.

Details

Epson Printhead

2*XP600 printheads, the color is more delicate, inkjet is smooth.

Capping Station

Liftable capping station, can be adjusted automatically.

White Ink Tank

White ink tank with stirring pump, which can prevent white ink from settling

Paper Pressing Wheel

Integrated paper pressing wheel, paper feeding more smoothly.

Intelligent Thermostat

Independent thermostats control the front and rear heating systems respectively, easier to adjust.

Anti-collision system

The left and right of the carriage increase anti-collision, reduce the scratch of the printhead, and protect the printhead

Specification

Model		DTF-A30 (A3 DTF Printer)
Nozzle Model		2*EPSON F1080
Printing Speed	High speed mode	720360DPI 4PASS 5m²/h 720540DPI 6PASS 4m²/h 720*720DPI 8PASS 3m²/h
	High precision mode	720360DPI 4PASS 3.5m²/h 720540DPI 6PASS 2.3m²/h 720"720DPI 8PASS 2.2m²/h
Color		4C+W or 6C+W(Lc/Lm/Fo/Fg as option)
Printing Format		300mm (12 inch)
RIP Software		RIIN/Flexiprint/CADlink/Maintop/NeoStampa
Media Transfer		Paper Tension
Heating Device		Front and Back Heating
Ink Road System		Automatic Ink Supply, White Ink Circulating and Stirring
Power Electric Supply		110V/220V 50-60 HZ
Power		Sleeping:30W, Standby:140W, Working:200W
Working Environment		Temperature 20-30℃ Humidity 35-65ph
Weight		Machine:130kg Package:50kg
Package Size/Weight		Printer: 1080650660mm 107kg Powder Shaker: 800600720mm 56kg
Machine Size/Weight		Printer: 940762978.3mm 80kg Powder Shaker: 640932577mm 45kg
