DTF-A602

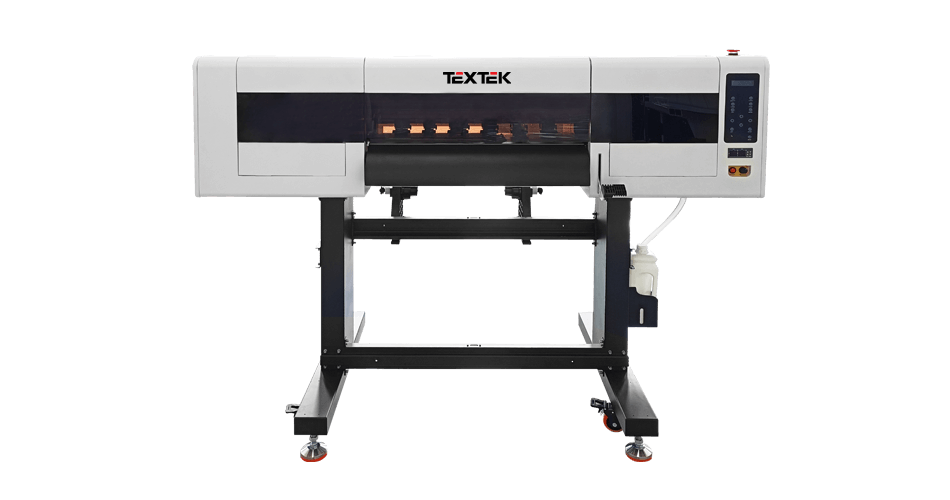

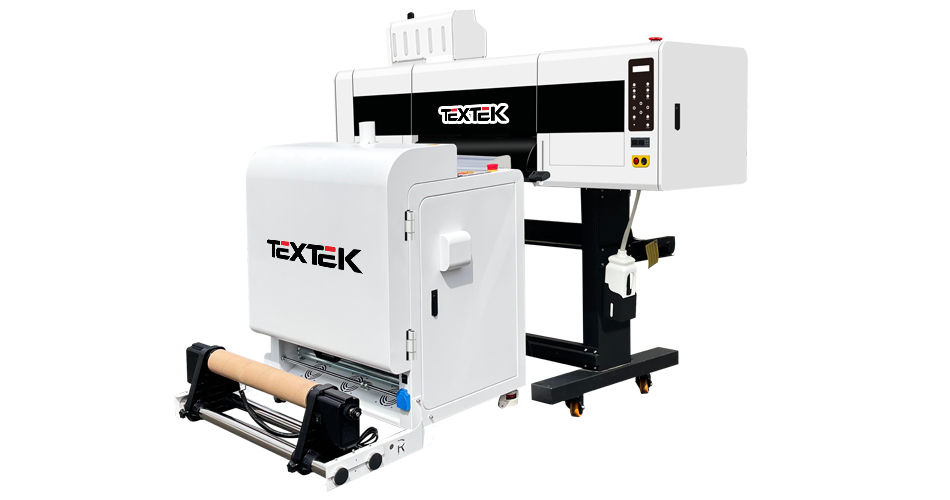

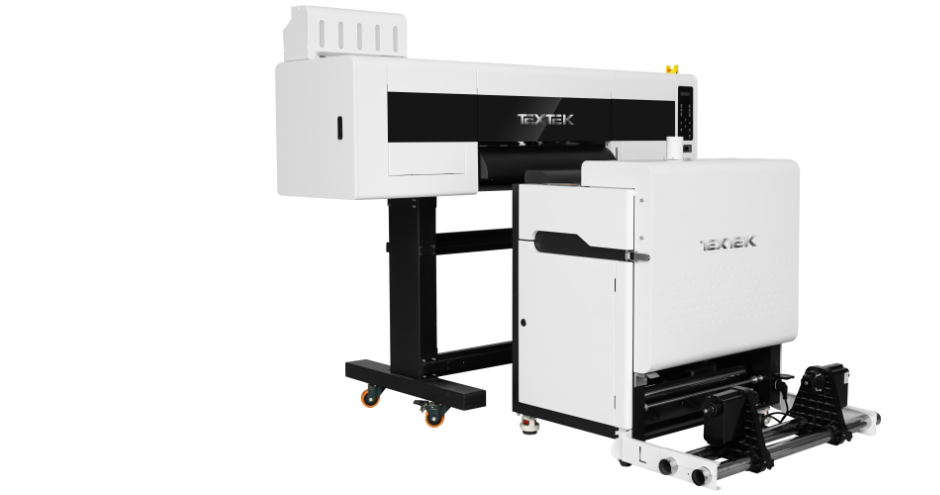

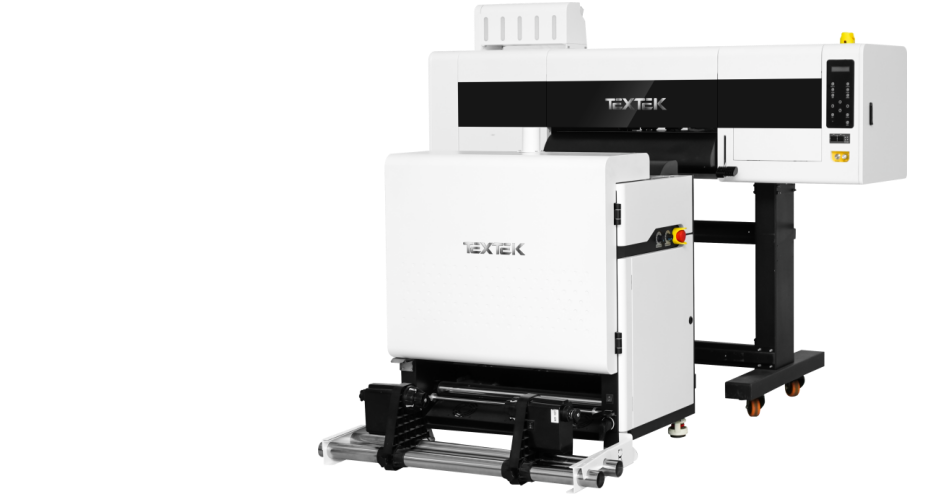

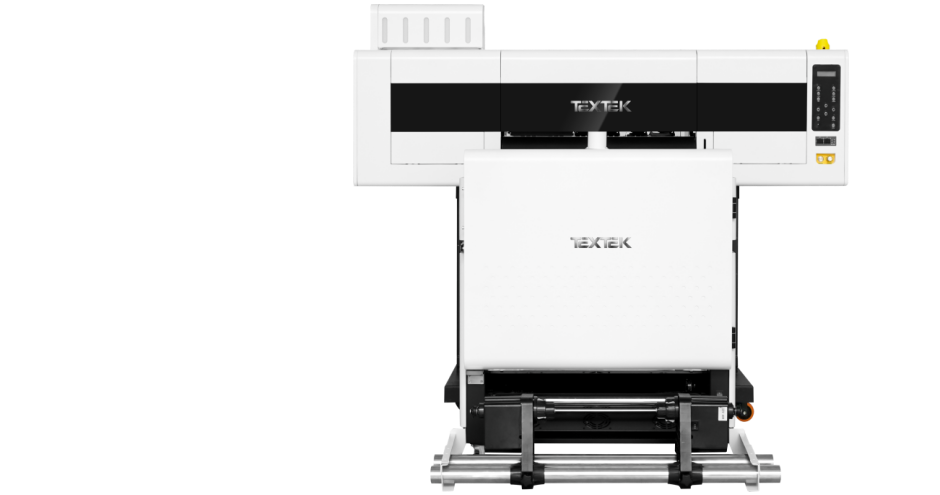

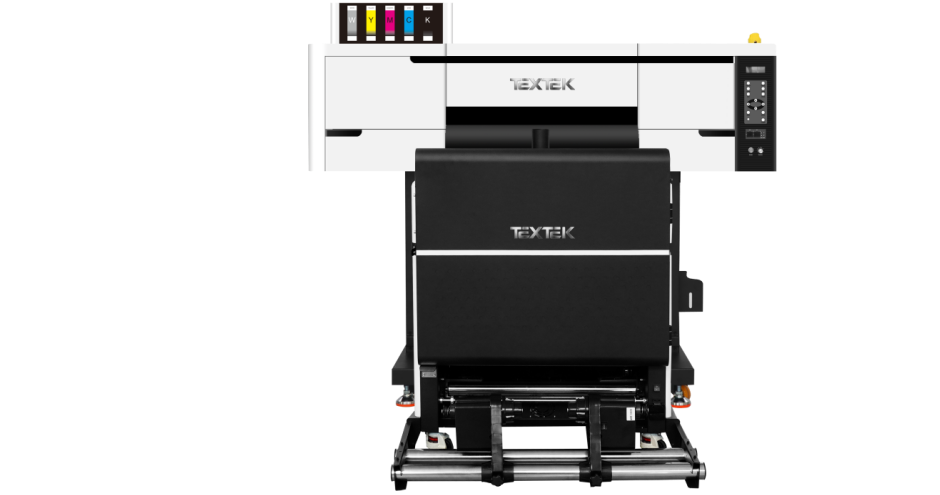

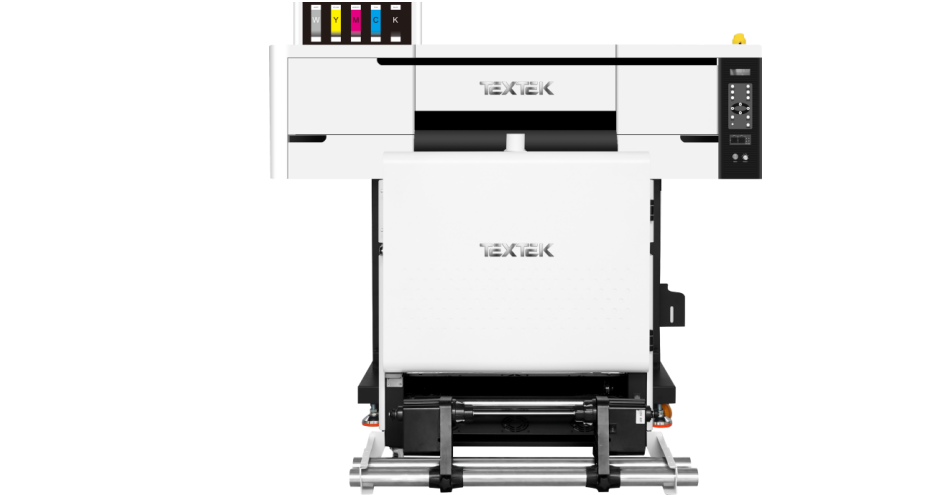

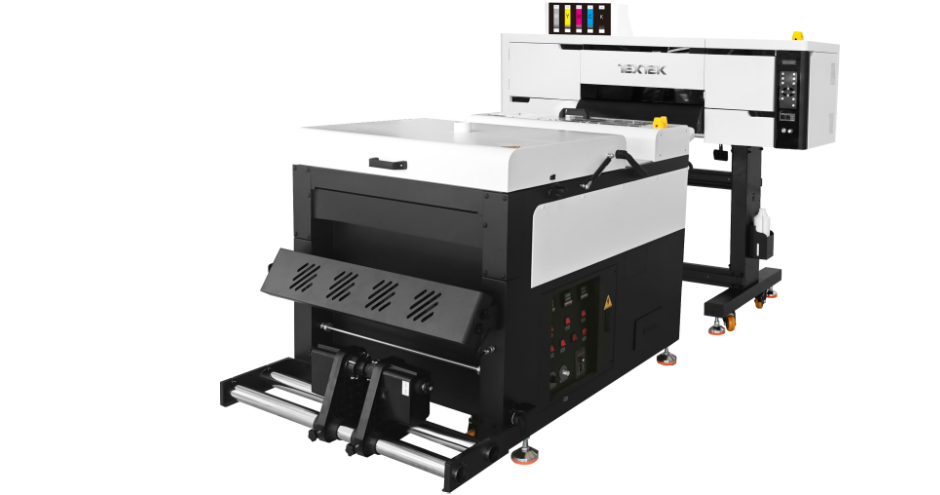

DTF Transfer Film Printer DTF-A602

Printhead: 2*EPSON I3200-A1/ EPSON I1600-A1
Printing Speed: 12-15sqm/h
Print Width: 60cm(24 inch)
Feed Width: 60cm
Ink: Pigment Ink
Ink Color: CMYK+W Printing
RIP Software: RIIN/Flexiprint/CADlink/Maintop

Send Inquiry

Feature Details Specification Video Application Inquiry

Feature

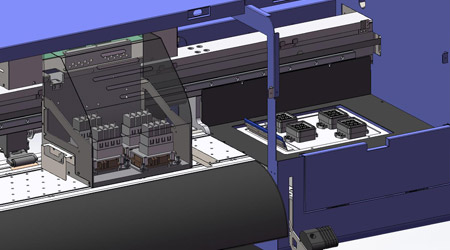

Support 2/3/4-head configuration, faster printing speed and higher efficiency.

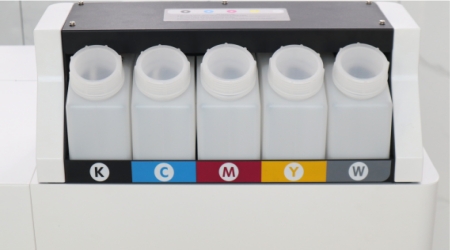

Support CMYK+W printing, the printing picture is colorful and high precision.

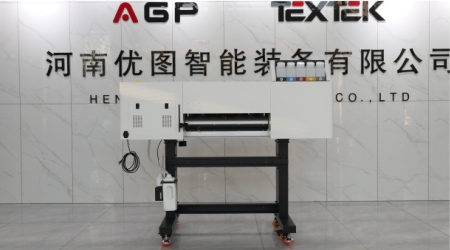

Humanized waste ink tank, replace sponge,convenient, no peculiar smell.

Fluorine rubber pressure roller reduces static electricity and ensures accurate paper feeding.

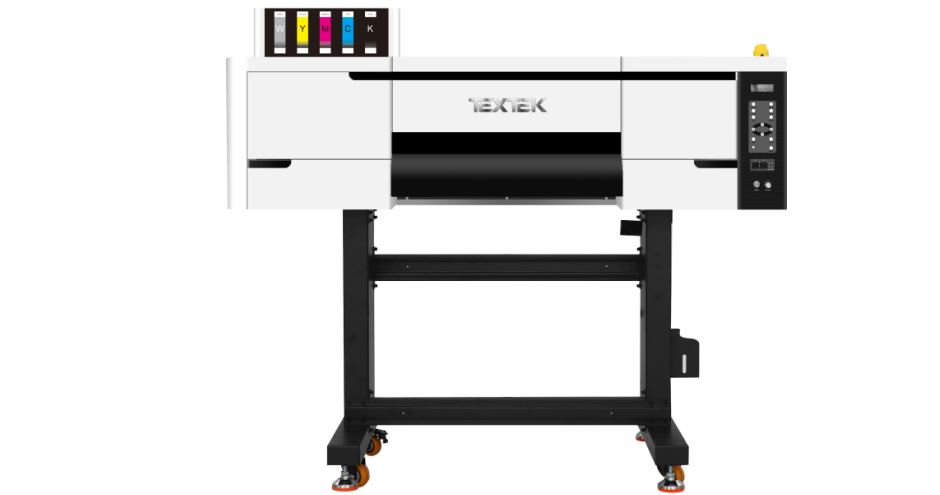

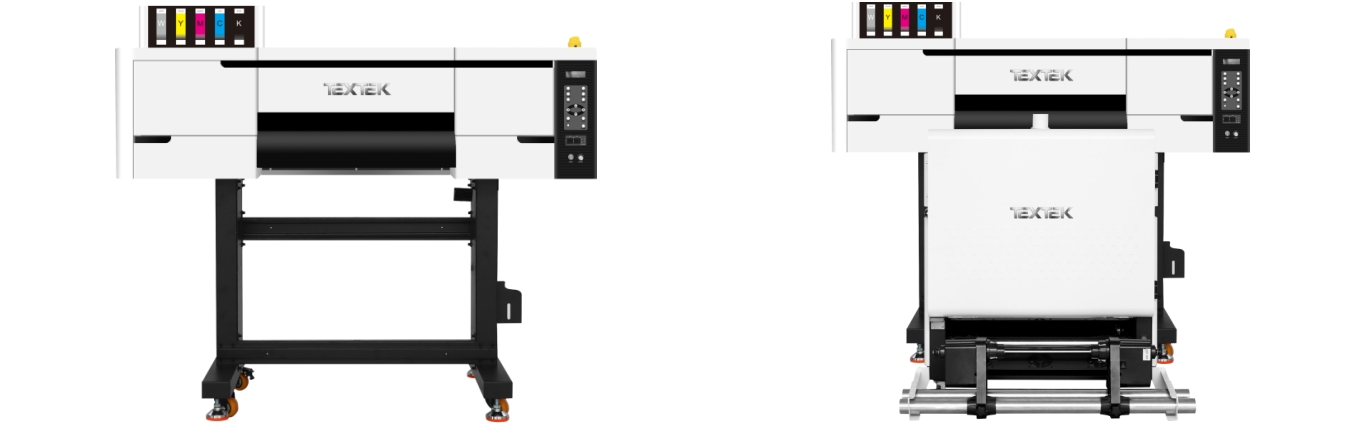

60cm DTF printers are available in white and blue color, OEM also acceptable, use your own logo.

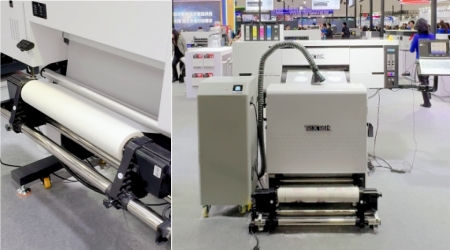

Adopt intelligent take-up system ensures that the material is rolled up neatly, easy storage.

Details

White Ink Circulating System

Avoid white ink precipitation and block the print head of DTF printer.

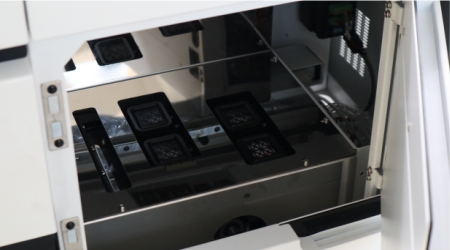

Liftable Capping Station

Adjustable capping station height for easy maintenance of printheads.

Front & Back Heating System

The front and back heating system ensures that the ink does not flow and the printing screen is complete.

Anti-collision System

Carriage is equipped with anti-collision device to protect printhead from damage when encountering obstacles.

Emergency Stop Device

Effectively protect printer and head and reduce maintenance costs.

High Precision Steel Tattoo

With 20mm diameter axis, which ensures film move more smoothly.

Automatic Powder Return Device

Using a special process, the powder can be fully recovered and easy to use.

Staged Heating Settings

Three-stage front, middle and rear heating device to ensure good printing effect.

Specification

Printer Model	DTF-A602 （60cm DTF Printer）
Printhead	2pcs EPSON I3200-A1	2pcs EPSON I1600-A1
Printing Speed	High speed mode 7201800DPI 6PASS 9m²/h 7202400DPI 8PASS 6m²/h High precision mode 7201800DPI 6PASS 7m²/h 7202400DPI 8PASS 5m²/h	720900DPI 6PASS 4m²/h 7201200DPI 8PASS 3m²/h 720*1800DPI 12PASS 2m²/h






Printing Width	600mm/ 24inch
Ink	CMYK+W Pigment Ink
Print Media	PET Film
Heating System	Front and Back Independent Heater
Transmission Interface	Gigabit LAN
RIP Software	Riin/Flexiprint/Cadlink/Maintop
Image Format	BMP, JPG, TIFF, EPS, PDF...
Computer System	Windows XP/Win7/Win8/Win10
Power Supply	110V/220V, 50/60 HZ, 10A Sleeping:45W, Standby:85W, Working:350W
Work Environment	TEMP.:20℃-30℃ Humidity:35%-65%
Machine Size	Printer: 18017191597mm 200kg Powder shaker: 9709881026mm 99kg
