DTF-A604

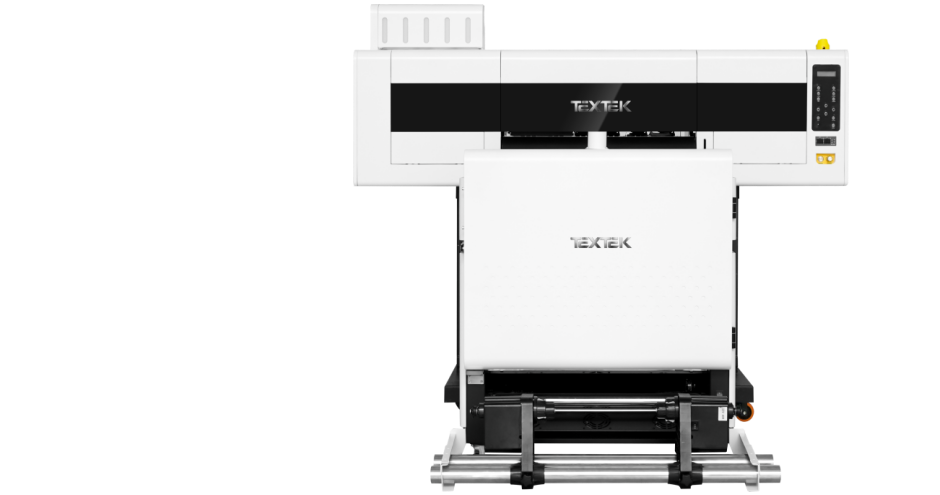

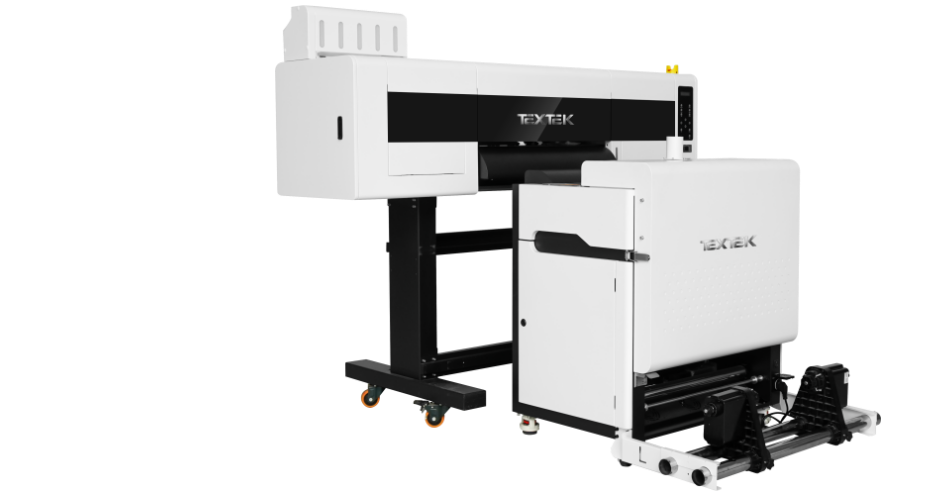

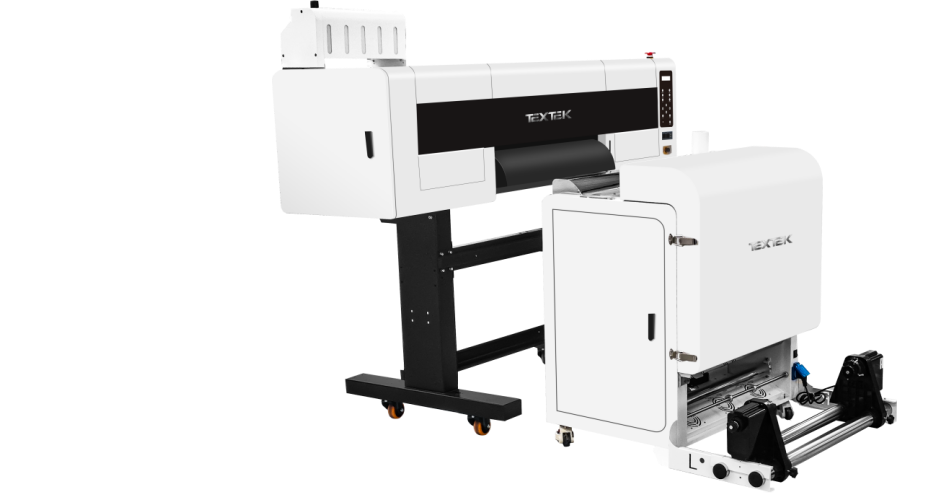

DTF Transfer Film Printer DTF-A604

Printhead: 4*EPSON I3200-A1/EPSON I1600-A1
Printing Speed: 12-15sqm/h
Print Width: 60cm(24 inch)
Feed Width: 60cm
Ink: Pigment Ink
Ink Color: CMYK+W Printing
RIP Software: Riin/Flexiprint/Cadlink/Maintop

Send Inquiry

Send Email

Feature Details Specification Video Application Inquiry

Feature

Using Hoson board, stable system, and a protection circuit greatly reduces the chance of burning the board during short circuit!

HIWIN silent guide rail, extended stainless steel heating printing platform, the printing film is more stable and does not arch the film

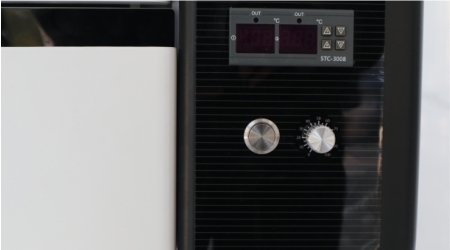

Simple operation, one-button nozzle cleaning and ink loading are more convenient, effectively improving work efficiency

The white ink stirring cycle is stable without clogging, and the ink shortage automatic alarm function

The paper film is better preserved, not easy to deform, and adapts to a variety of materials

Automatic film closing system. Ensure higher stepping accuracy and maximum print quality.

Details

White Ink Circulating System

Avoid white ink precipitation and block the print head of DTF printer.

Liftable Capping Station

Adjustable capping station height for easy maintenance of printheads.

Front & Back Heating System

The front and back heating system ensures that the ink does not flow and the printing screen is complete.

Anti-collision System

Carriage is equipped with anti-collision device to protect printhead from damage when encountering obstacles.

Emergency Stop Device

Effectively protect printer and head and reduce maintenance costs.

High Precision Steel Tattoo

With 20mm diameter axis, which ensures film move more smoothly.

Automatic Powder Return Device

Using a special process, the powder can be fully recovered and easy to use.

Staged Heating Settings

Three-stage front, middle and rear heating device to ensure good printing effect.

Specification

Printer Model	DTF-A603 （60cm DTF Printer）
Printhead	4pcs EPSON I3200-A1	4pcs EPSON I1600-A1
Printing Speed	High speed mode 7201200DPI 4PASS 23m²/h 7201800DPI 6PASS 15m²/h 7202400DPI 8PASS 11m²/h High precision mode 7201200DPI 4PASS 18m²/h 7201800DPI 6PASS 12m²/h 7202400DPI 8PASS 9m²/h	720900DPI 6PASS 13m²/h 7201200DPI 8PASS 9m²/h 7201800DPI 12PASS 6m²/h 720900DPI 6PASS 10m²/h 7201200DPI 8PASS 7m²/h 7201800DPI 12PASS 5m²/h



Printing Width	600mm/ 24inch
Ink	4C+W
Print Media	PET Film
Heating System	Front and Back Independent Heater
Transmission Interface	Gigabit LAN
RIP Software	Riin/Flexiprint/Cadlink/Maintop
Image Format	BMP, JPG, TIFF, EPS, PDF...
Computer System	Windows XP/Win7/Win8/Win10
Power Supply	110V/220V, 50/60 HZ, 10A Sleeping:45W, Standby:85W, Working:350W
Work Environment	TEMP.:20℃-30℃ Humidity:35%-65%
