UV-3040T

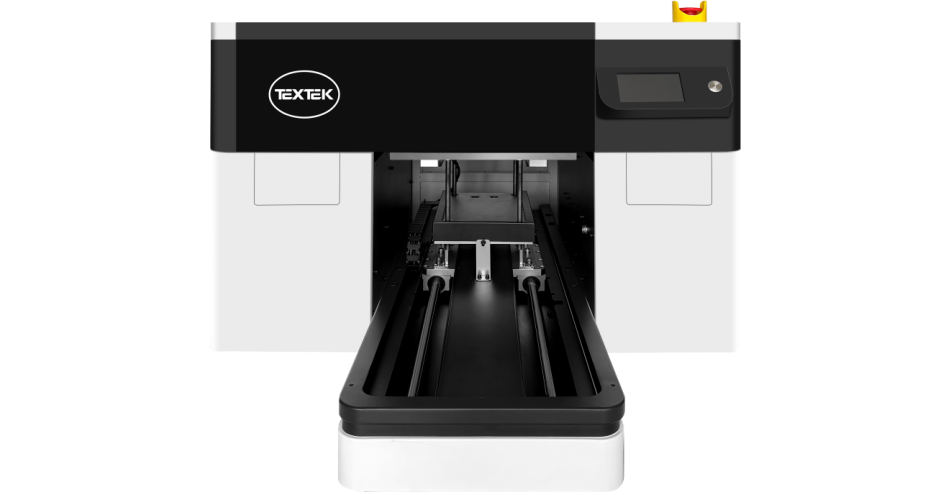

Flatbed UV Printer 3040T

Printhead: 1 EPSON l3200-U1 HD Printhead
Printing Speed: 0.28m²/h~3m²/h
Print Width: Platform:297*420mm
Roll to roll device: supporting roll width 30-290mm, diameter 150mm
Inner core diameter:76mm
Rotary device: supporting cylinder length 20-230mm, diameter 30-90mm
Ink: Environmentally friendly UV curing ink
Machine size: 860mm*1031mm*623mm 95KG
Print Media: Glass, plates, various signs, crystal, PVC, acrylic, leather, plastic, etc.
Print Media Thickness: 1mm~90mm
Color Configuration: Standard: CMYK+W+V
Optional: YMCK LC LM+W
RIP Software: RIIN/Maintop/Flexiprint/NeoStampa

Send Inquiry

Feature Specification Inquiry

Feature

Versatile 3-in-1 UV Hybrid Printing

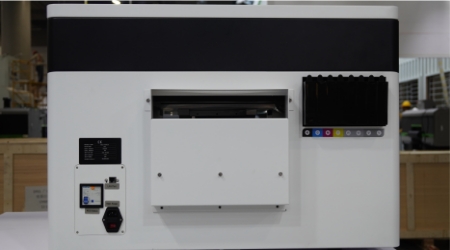

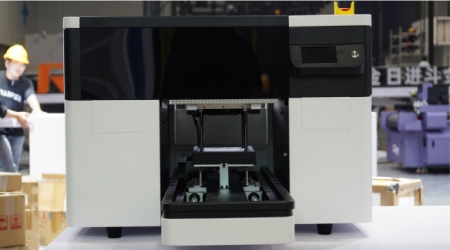

Precision Printing with Epson i3200-U1 Head

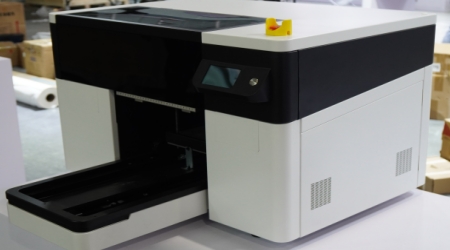

Smart Visual Positioning System - Optional

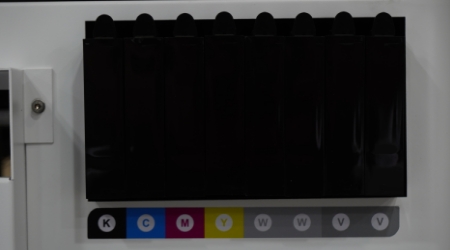

W+CMYK+Varnish Multi-Layer Effects

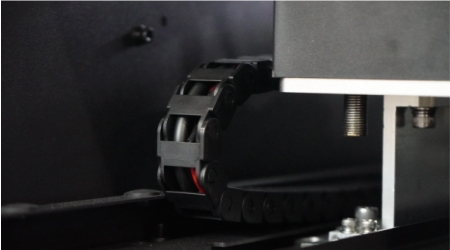

Advanced Rotary & Roll-to-Roll Device

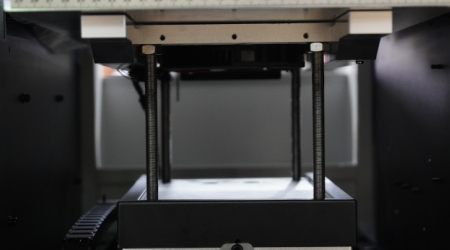

Industrial Build & Stable Performance

Specification

Model	UV 3040T
Nozzle Model	1 EPSON I3200-U1 HD Printhead
Printing Speed	0.28m²/h~3m²/h
Color	Standard: CMYK+W+V Optional: YMCK LC LM+W
Print Width	Platform:297*420mm Roll to roll device: supporting roll width 30-290mm, diameter 150mm Inner core diameter:76mm Rotary device: supporting cylinder length 20-230mm, diameter 30-90mm
Printing Media	Glass, plates, various signs, crystal, PVC, acrylic, leather plastic, etc.
RIP Software	RIIN/Maintop/Flexiprint/NeoStampa
Photo Format	TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc.
Computer Configuration	Processor: Intel Core i5-13500H or above. Memory: 16GB Graphics card: independent graphics card; Storage: 1TB SSD Network card: RG45 Gigabit network card with Intel chip+ Jumbo Packet-9014" mode (for camera connection) System: WIN10, WIN11 64-bit
Machine Size/Weight	8601031623mm 95kg
Packaging Size/Weight	11501010800mm 135kg
Work Environment	T:18°C~28°C,H: 40%~60%
Powder supply	220V 50/60Hz(auto switching) Sleeping:30W, Working:500W
