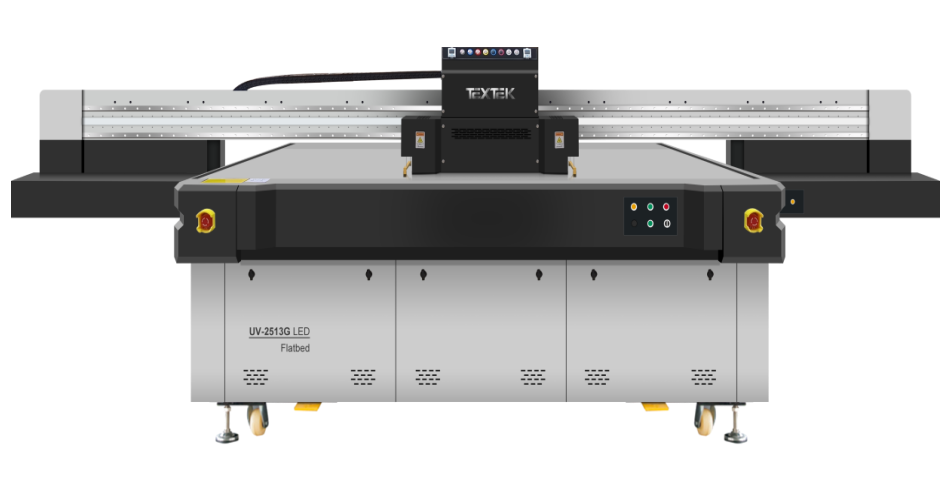

Flatbed UV Printer 2513

Flatbed UV Printer 2513

UV-2513

Flatbed UV Printer 2513

Printhead: Ricoh Gen 5/Gen 6(7PL)Grey Scale Micro Piezo Printhead
Print Head No.: 2-8 H
Print Size: 2500 mm × 1300 mm
Print Thickness: 1mm-100 mm
Ink Type: Environment-friendly UV curing ink
Ink Color: Standard: C M Y K Lc Lm W, Varnish is optional
Print Speed(8H-All Color): High Speed Mode: 56.7 m²/h; Production Mode: 34.2 m²/h; High Quality Mode: 29.2 m²/h
RIP Software: Standard: PhotoPrint. Print Factory and Onyx are optional
Power: 220 V 50 HZ/60 HZ/8.0 KW
Machine size/weight: 4206 × 2200 × 1500 mm(L*W*H) 1300 kg
01
Feature
01

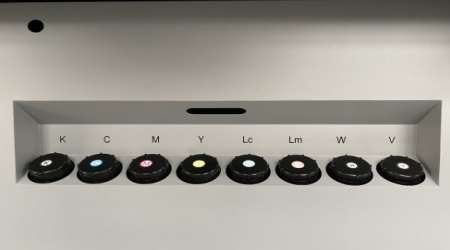

KCMY+LcLm+W+V

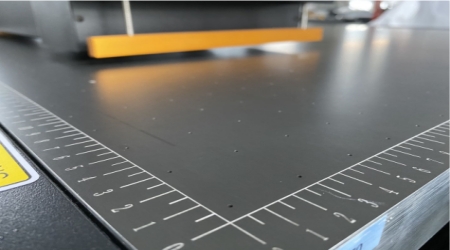

Platform Suction System
02
Platform Suction System
Platform Suction System
03
Static Elimination System
Static Elimination System
04

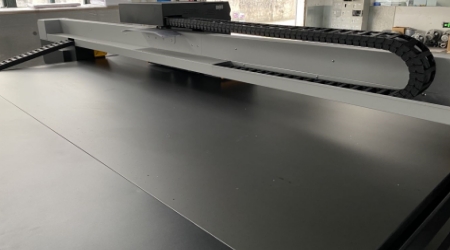

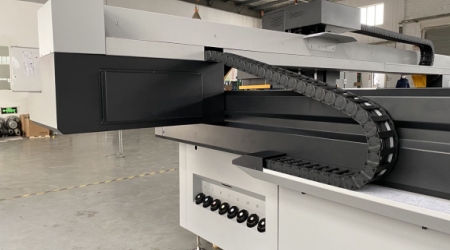

High Precision Guide Rail
High Precision Guide Rail
05

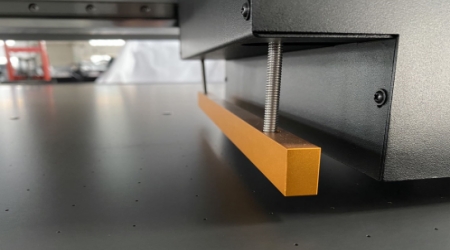

Intelligent Detection of Material Thickness
Intelligent Detection of Material Thickness
06
Carriage Height Automatic Adjustment
Carriage Height Automatic Adjustment
03

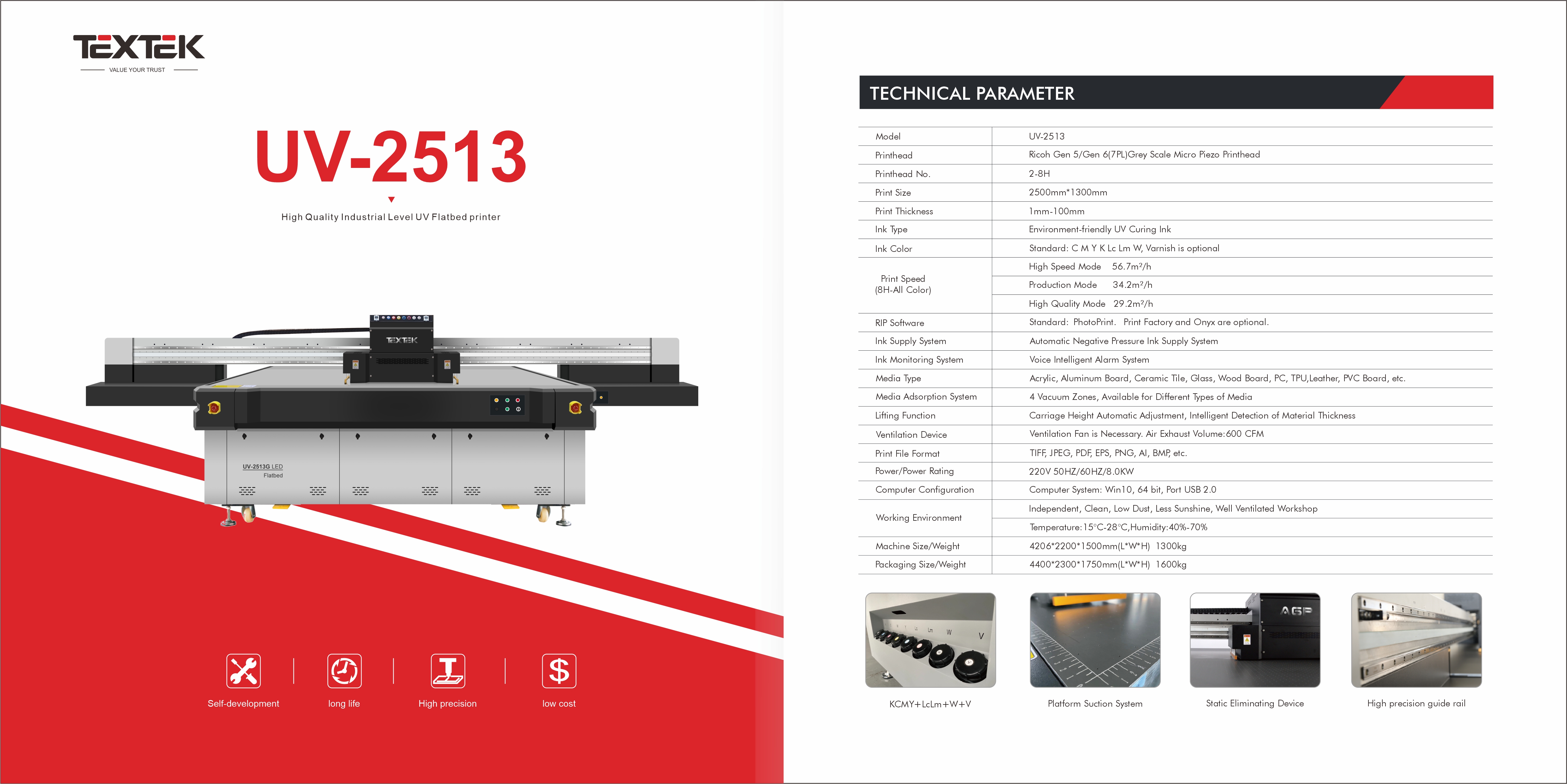

Specification
Model UV Printer 2513
Printhead Ricoh Gen 5/Gen 6(7PL)Grey Scale Micro Piezo Printhead
Print Head No. 2-8 H
Print Size 2500 mm×1300 mm
Print Thickness 1 mm-100 mm
Ink Type Environment-friendly UV curing ink
Ink Color Standard: C M Y K Lc Lm W, Varnish is optional
Ink Supply System Automatic Negative Pressure Ink Supply System
Ink Monitoring System Voice Intelligent Alarm System
Print Speed(8H-All Color) High Speed Mode: 56.7m²/h; Production Mode: 34.2m²/h; High Quality Mode: 29.2m²/h
RIP Software Standard: PhotoPrint. Print Factory and Onyx are optional
Power 220 V 50 HZ/60 HZ/8.0 KW
Media Type Acrylic, Aluminum Board, Ceramic Tile, Glass, Wood Board, PC, TPU, Leather, PVC Board, etc.
Media Adsorption System 4 Vacuum Zones, Available for Different Types of Media
Lifting Function Carriage Height Automatic Adjustment, Intelligent Detection of Material Thickness
Ventilation Device Ventilation Fan is Necessary. Air Exhaust Volume: 600 CFM
Print File Format TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc.
Computer Configuration Computer System: Win 10, 64bit, Port USB 2.0
Working Environment Independent, Clean, Low Dust, Less Sunshine, Well Ventilated Workshop; Temperature: 15°C-28°C; Humidity: 40%-70%
Machine Size/Weight 4206×2200×1500 mm(L*W*H) 1300 kg
Packaging Size/Weight 4400×2300×1750 mm(L*W*H) 1600 kg
