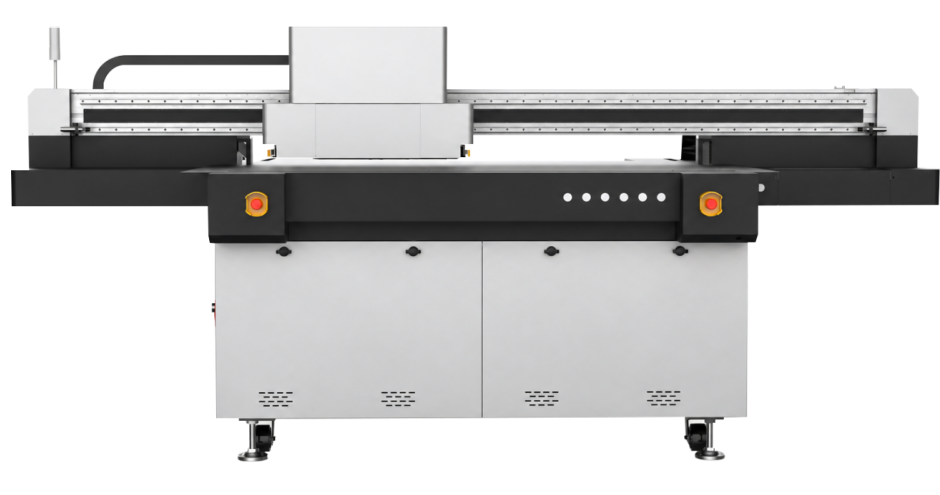

| Model | UV Printer 1613 |
| Printhead | Ricoh Gen5/Gen6 Grey Scale Micro Piezo Printhead (i3200-U1 Optional) |
| Print Head No. | 2-8H |
| Print Size | 1600mm*1300mm |
| Print Thickness | 1mm-100mm |
| Ink Path Configuration | Standard configuration: YMCK+W; optional: Lc, Lm, V |
| Primary Ink Tank | 1.5L large ink tank, voice alert function for low ink, automatic white ink circulation |

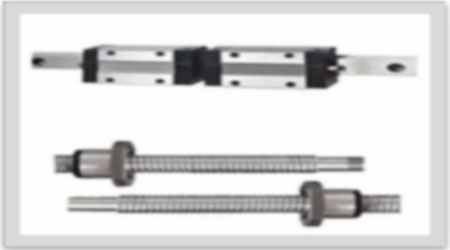

| Material feeding | Dual lead screws |
| Drive motor | Dual 750W full-function servo drives and motors |
| Exercise methods | Direct-connected double lead screws, dual-motor material feeding |
| RIP Software | Comes standard with American Photoprint; American ONYX is available as an option |

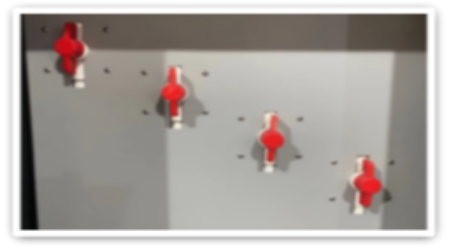

| Suction activation method | Manual adjustment, 4 platform zones |
| Cleaning | Independent color separation ink pressing, independent ink cartridge heating device |
| UV lamp | LED water-cooled UV lamp |
| Computer System | Win11_64bit/Win10 64bit professional version; CPU: Intel i7 or higher (not support AMD); Memory: DDR4/DDR5 16GB or above Graphics card: No special requirements; Hard drive 1: Solid-state drive (SSD) 512 G or larger (for storing the operating system and cache files) Hard drive 2: High-speed hard drive with 512G or more (for storing relevant materials, backup files, backup images, etc.) (Customers choose it according to actual situation) USB Port: USB 3.0*2 or above |
| Power requirements | 220V 50HZ/60HZ (Single Phase) / 380V 50HZ (3 Phase); Power consumption: 3150W |
| Working Environment | Temperature: 15°C-25°C, Humidity: 40%-70% |
| Machine Size/Weight | 3530*2120*1560mm(L*W*H) 980kg |
| Packaging Size/Weight | 3750*2230*1750mm(L*W*H) 1200kg |
