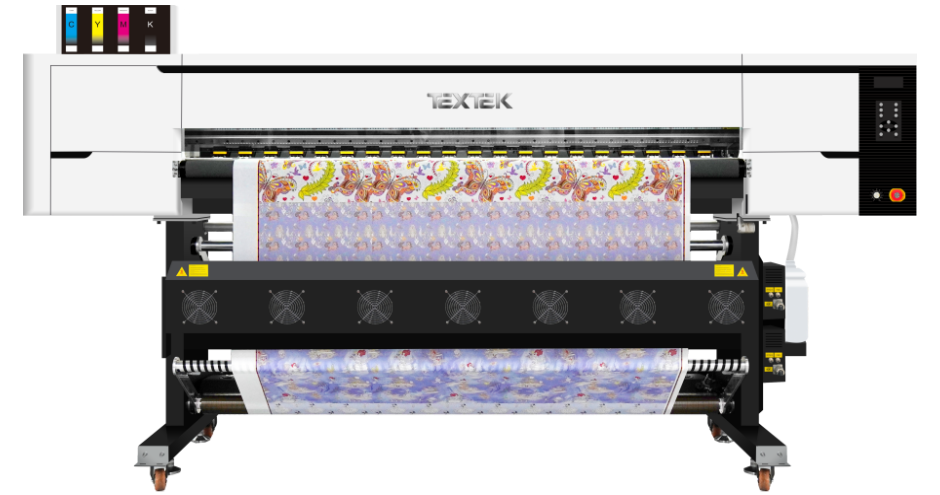

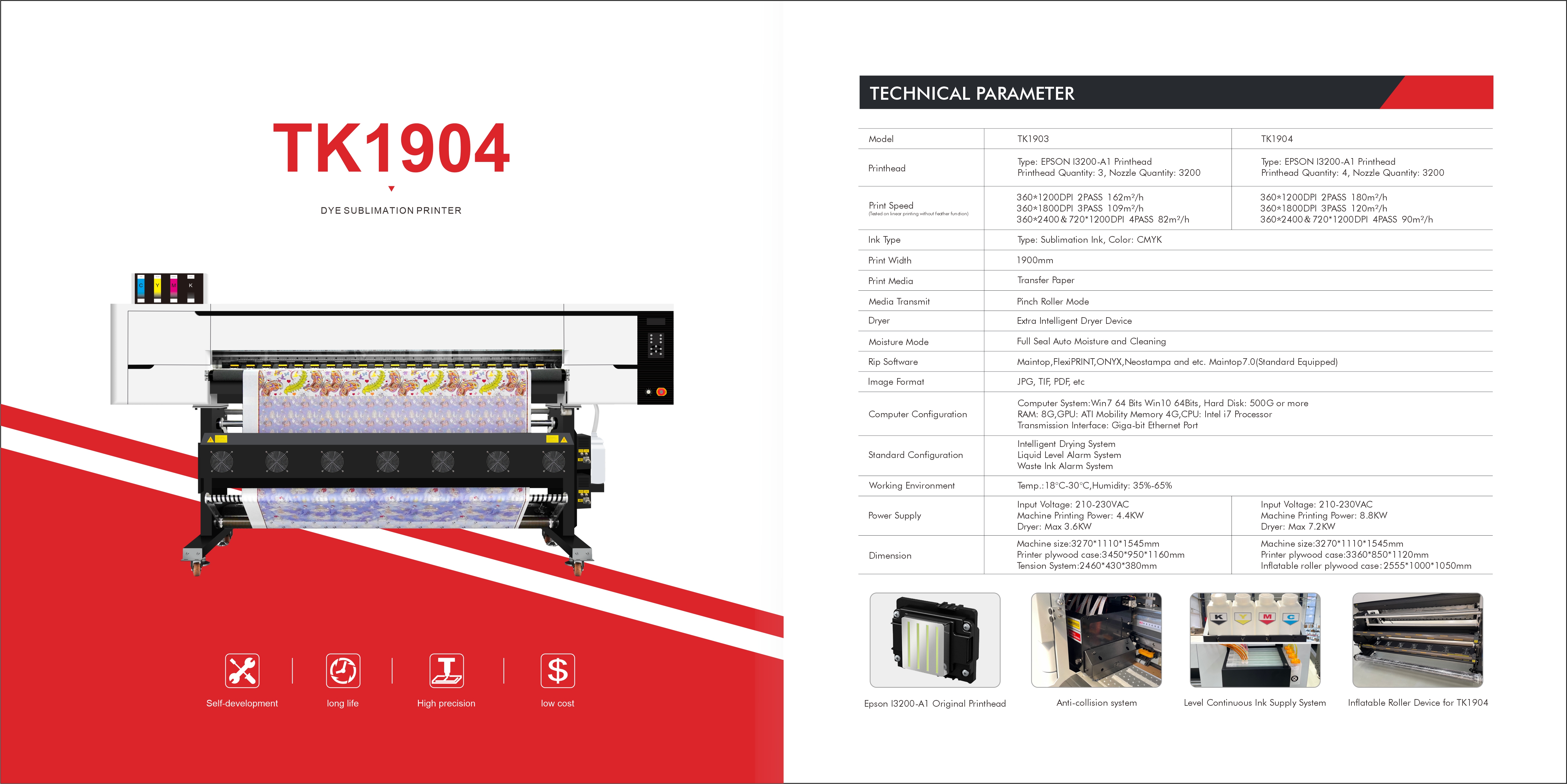

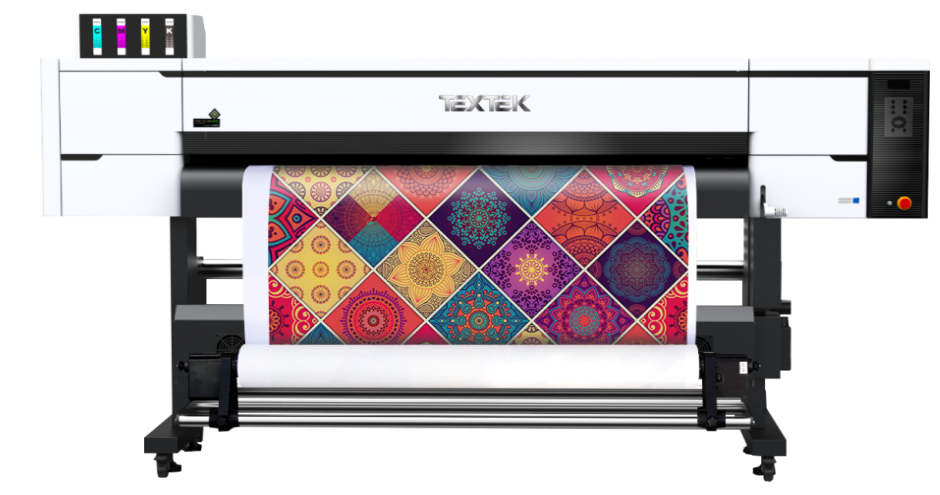

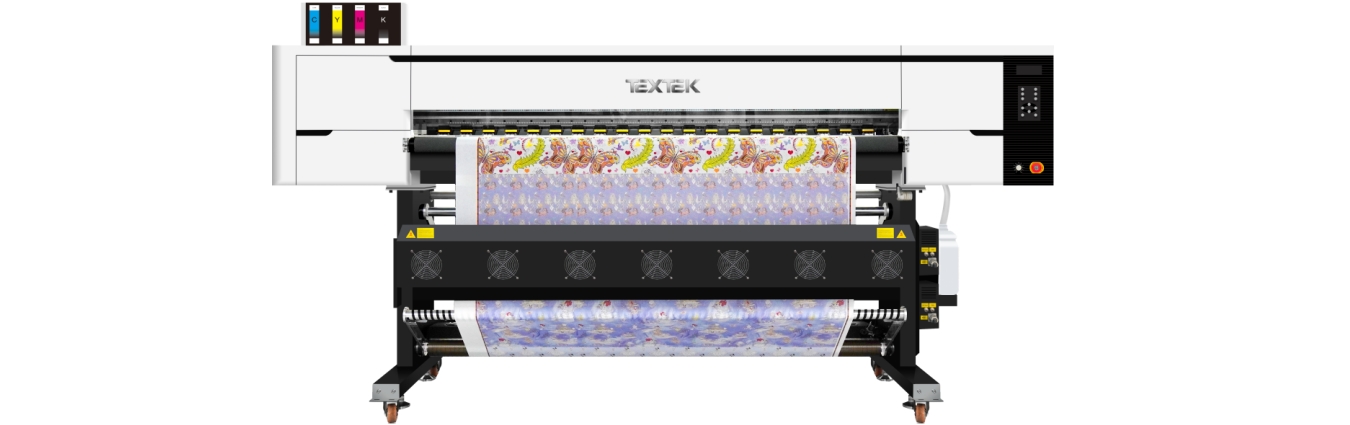

| Model | TK 1903 | TK 1904 | |

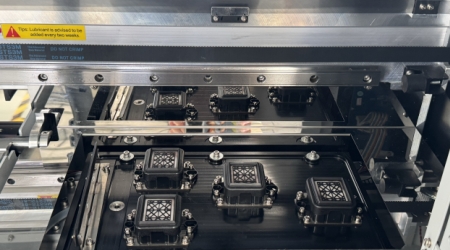

| Printhead | 3 EPSON I3200-A1 Printheads | 4 EPSON I3200-A1 Printheads | |
| Print speed | 360*1200DPI 2PASS 162m²/h 360*1800DPI 3PASS 109m²/h 360*2400&720*1200DPI 4PASS 82m²/h |
360*1200DPI 2PASS 180m²/h 360*1800DPI 3PASS 120m²/h 360*2400&720*1200DPI 4PASS 90m²/h |
|

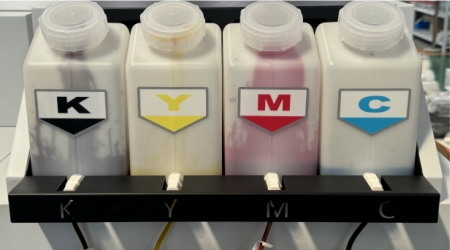

| Ink type | Sublimation ink; color: C M Y K | ||
| Print width | 1900mm | ||
| Print Media | Transfer paper | ||
| Media transmit | Pinch roller mode | ||

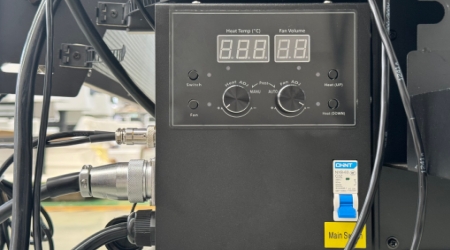

| Dryer | Extra intelligent Dryer Device | ||
| Moisture mode | Full seal, auto moisture, and cleaning | ||
| Rip software | Maintop, FlexiPRINT, ONYx, Neostampa, etc. Maintop 7.0 (Standard Equipped) | ||
| Image format | JPG, TIF, PDF, etc | ||
| Computer configuration | Computer system: WIN7 64 Bits WIN 10 64 Bits; Hard disk:500G or more Ram: 8G, GPU: ATI mobility Memory 4G, CPU: intel i7 processor |
||
| Standard configuration | Intelligent Drying System Liquid level alarm system Waste ink alarm system |
||
| Working environment | Temp.: 18°c-30°c,Humidity: 35%-65% | ||
| Power supply | Input voltage:210-230VAC Input voltage:210-230VAC Machine printing power: 4.4KW Machine printing power: 8.8KW Dryer: Max 3.6KW Dryer: Max 7.2KW |
||
| Dimension | Machine size: 3270*1110*1545mm Machine size: 3270*1110*1545mm Printer plywood case: case:3450*950*1160mm Printer plywood case: case:3360*850*1120mm Tension system: 2460*430*380mm Inflatable roller plywood case: 2555*1000*1050 mm |
||
| Package/Weight | 3520*1000*9100mm 454kg | ||
