DTF Cutter C7090

Dtf cutter C7090
DTF Cutter C7090

DTF Cutter C7090

DTF film cutter C7090

Max cutting speed: 1000mm/s
Cutting thickness: ≤1.2mm
Cutting material: Crystal labels / DTF pet film / self-adhesive Vinyl, etc
Pen/Blade type: Double blade structure
Cutting area: 700*900mm,unlimited cutting length( auto section pulling materials)
Machine size/weight:1460*1300*1000mm 220kg
Package sizelweight:1600*1300*1100mm 240kg
01
Feature
01
CCD camera and double cutting head
Multi interface
02
Multi interface
Multi interface
03

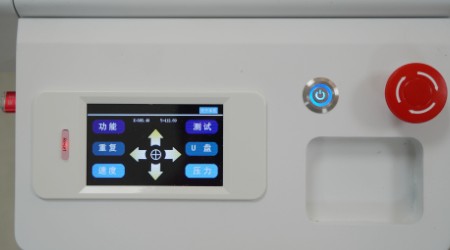

Touch screen
Touch screen
04
High power vacuum pump
High power vacuum pump
05
Imported linear guide rail
Imported linear guide rail
06
Servo motor
Servo motor
03
Parameter
Model DTF Cutter C7090
Max cutting speed 1000mm/s
Cutting thickness ≤1.2mm
Cutting material Crystal labels / DTF PET film / self-adhesive Vinyl, etc
Cutting pressure 1000g
Cutting method Half cutting /Full cutting
Pen/Blade type Double blade structure
Media hold method Vacuum suction
Drive method High speed servo drive
Mechanical resolution 士0.005mm
Standard interface USB /U disk / Ethernet (WIFI Optional)
Compatible software Signmaster / Coreldraw / Al/AUTO CAD
Screen size 6.0 inches touch screen
Power supply 220V 50/60Hz(auto switching) Working:2200W
Cutting area 700*900mm,unlimited cutting length( auto section pulling materials)
Machine size/weight 1460*1300*1000mm 220kg
Package size/weight 1600*1300*1100mm 240kg
