DTF-A30 V2

A3 Direct to film printer

Printhead: 2/3*EPSON I1600-A1
Printing Speed: 5sqm/h 720*900DPI
Print Size: 300mm
Printing Color: 4C+W or 6C+W Printing(Lc/Lm/Fo/Fg as option)
RIP Software: RIIN/Flexiprint/CADlink/Maintop/NeoStampa

Send Inquiry

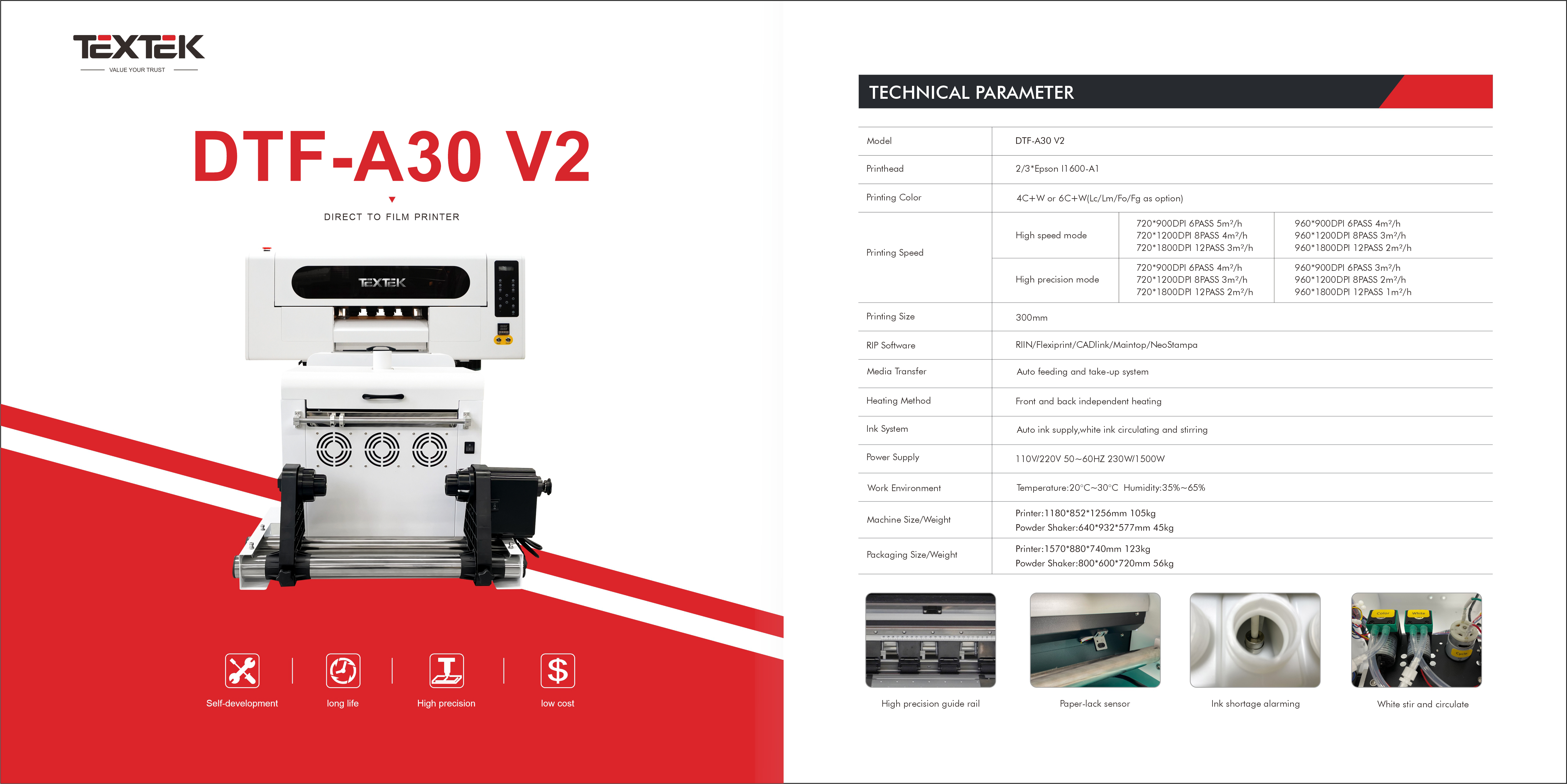

BROCHURE

Feature Specification Inquiry

Feature

2/3*EPSON I1600-A1 Print heads.

Support 6-color printing, color is fuller.

Small footprint and low cost.

High color fastness, not easy to fall off, and washable.

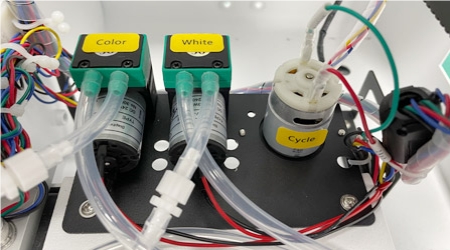

White ink circulation system to filter impurities and prevent clogging.

Ink shortage alarming

Specification

Model		DTF-A30 V2 (A3 DTF Printer)
Nozzle Model		2/3*EPSON I1600-A1
Printing Speed	High speed mode	720900DPI 6PASS 5m²/h 7201200DPI 8PASS 4m²/h 720*1800DPI 12PASS 3m²/h
	High precision mode	720900DPI 6PASS 4m²/h 7201200DPI 8PASS 3m²/h 720*1800DPI 12PASS 2m²/h
Color		4C+W or 6C+W(Lc/Lm/Fo/Fg as option)
Printing Size		300mm (12 inch)
RIP Software		RIIN/Flexiprint/CADlink/Maintop/NeoStampa
Media Transfer		Auto feeding and take-up system
Heating Device		Front and Back Heating
Ink Road System		Automatic Ink Supply, White Ink Circulating and Stirring
Power Electric Supply		110V/220V 50-60 HZ
Power		Sleeping:30W, Standby:140W, Working:200W
Working Environment		Temperature 20-30℃ Humidity 35-65ph
Weight		Machine:130kg Package:50kg
Machine Size/Weight		Printer: 11808521256mm 105kg Powder Shaker: 640932577mm 45kg
Package Size/Weight		Printer: 1570880740mm 123kg Powder Shaker: 800600720mm 56kg
